Capacitors and Capacitance: A Comprehensive Guide

Capacitors are among the most essential and common components in electronics. From the flash on your camera to the power supply in your computer, these small devices play a crucial role in storing and managing electrical energy.

This guide will walk you through everything you need to know about capacitors and capacitance, using the detailed infographic below to illustrate key concepts. We will cover their basic structure, how they work, the formulas that govern them, and their wide range of applications.

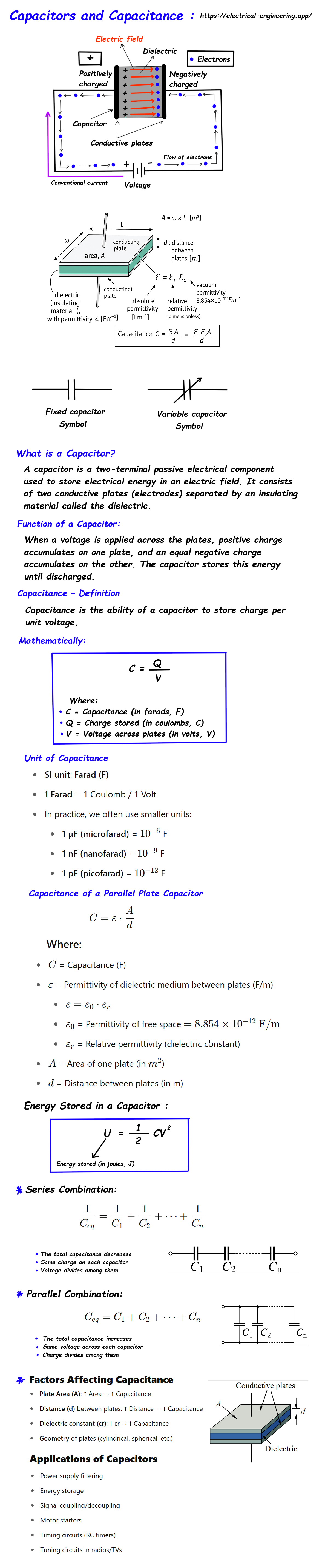

An infographic explaining capacitors and capacitance, showing their structure, formulas for capacitance and energy, series and parallel combinations, and applications.

What is a Capacitor?

A capacitor is a two-terminal, passive electrical component designed to store electrical energy in an electric field.

As shown in the diagram, its most basic form consists of:
1. Two Conductive Plates: These are typically made of metal and act as the electrodes.
2. A Dielectric: This is an insulating material placed between the two plates. The dielectric can be made of various materials, including ceramic, plastic, glass, or even a vacuum.

The entire assembly is designed to hold charge without letting current flow directly through it.

How Does a Capacitor Work?

The function of a capacitor is centered on its ability to store and release electrical energy. Here’s the step-by-step process, illustrated in the top part of our infographic:

  1. Applying Voltage: When a voltage source (like a battery) is connected across the two terminals of the capacitor, an electric field is established.
  2. Charge Accumulation: The voltage causes electrons to be pulled away from one conductive plate, making it positively charged. These same electrons are then pumped onto the second plate, causing it to become negatively charged.
  3. Energy Storage: An equal amount of positive and negative charge accumulates on the opposing plates. This separation of charge creates a stable electric field across the dielectric. The energy is not stored in the charge itself, but rather in this electric field.
  4. Discharging: The capacitor will hold this stored energy as long as it's not connected to a circuit. When a path is provided, the stored energy is released, and the capacitor discharges.

Understanding Capacitance

Capacitance is the fundamental property of a capacitor. It is defined as the ability of a capacitor to store an electrical charge per unit of voltage applied across it. In simpler terms, it’s a measure of "how much" charge a capacitor can hold for a given voltage.

The Mathematical Formula for Capacitance

The relationship between capacitance (C), charge (Q), and voltage (V) is expressed by the following formula:

C = Q / V

Where:
C is the Capacitance, measured in Farads (F).
Q is the Charge Stored on the plates, measured in Coulombs (C).
* V is the Voltage across the plates, measured in Volts (V).

The Unit of Capacitance: The Farad (F)

The SI unit for capacitance is the Farad (F), named after the English physicist Michael Faraday.

  • 1 Farad = 1 Coulomb / 1 Volt

A Farad is a very large unit of capacitance. In most practical electronic circuits, you will encounter much smaller values, which are expressed using metric prefixes:
1 µF (microfarad) = 10⁻⁶ F
1 nF (nanofarad) = 10⁻⁹ F
* 1 pF (picofarad) = 10⁻¹² F

Capacitance of a Parallel Plate Capacitor

The capacitance of the most common type of capacitor, the parallel plate capacitor, is determined by its physical characteristics.

Factors Affecting Capacitance

The capacitance is directly influenced by three key factors, as shown by the formula:

*`C = ε (A / d)`**

Let's break down each factor:

  1. Plate Area (A): The larger the area of the conductive plates, the higher the capacitance. A larger area provides more space for charge to accumulate.
    * ↑ Area (A) → ↑ Capacitance (C)

  2. Distance (d) between plates: The smaller the distance between the plates, the higher the capacitance. A smaller gap results in a stronger electric field, allowing more charge to be stored for the same voltage.
    * ↑ Distance (d) → ↓ Capacitance (C)

  3. Dielectric Constant (εr): The type of insulating material (dielectric) used has a significant impact. The material's ability to support an electric field is called its permittivity (ε). A material with higher permittivity allows for more capacitance.
    * ↑ Dielectric Constant (εr) → ↑ Capacitance (C)

The term permittivity (ε) is a product of two values: ε = εr * εo*, where:
εo* is the permittivity of free space (a vacuum), a physical constant approximately equal to 8.854 × 10⁻¹² F/m.
εr is the relative permittivity, or dielectric constant, of the material. It's a dimensionless number that indicates how much better the material is at storing energy compared to a vacuum.

Energy Stored in a Capacitor

The primary purpose of a capacitor is to store energy. The amount of potential energy (U) stored in a capacitor is given by the formula:

*`U = ½ CV²`**

Where:
U is the Energy Stored, measured in Joules (J).
C is the Capacitance in Farads (F).
* V is the Voltage in Volts (V).

This formula shows that the energy stored increases with both capacitance and the square of the voltage.

Capacitors in Circuits: Series and Parallel Combinations

To achieve a specific capacitance value in a circuit, multiple capacitors can be combined in series or in parallel.

Series Combination

When capacitors are connected end-to-end, they are in series.

  • Formula: The reciprocal of the equivalent capacitance (Ceq) is the sum of the reciprocals of the individual capacitances.
    1/Ceq = 1/C1 + 1/C2 + ... + 1/Cn
  • Key Characteristics:
    • The total capacitance decreases and is always less than the smallest individual capacitor.
    • The charge (Q) is the same on each capacitor.
    • The total voltage divides among the capacitors.
Parallel Combination

When capacitors are connected across the same two points, they are in parallel.

  • Formula: The equivalent capacitance (Ceq) is the simple sum of the individual capacitances.
    Ceq = C1 + C2 + ... + Cn
  • Key Characteristics:
    • The total capacitance increases.
    • The voltage (V) is the same across each capacitor.
    • The total charge divides among the capacitors.

Common Applications of Capacitors

Capacitors are versatile components found in nearly all electronic devices. Some of their most important applications include:

  • Power Supply Filtering: Smoothing out ripples in converted AC-to-DC power to provide a stable DC voltage.
  • Energy Storage: Storing a large amount of energy and releasing it quickly, such as in a camera flash or a defibrillator.
  • Signal Coupling/Decoupling: Blocking DC voltage while allowing AC signals to pass through from one section of a circuit to another.
  • Motor Starters: Providing a large initial burst of current to help start single-phase AC motors.
  • Timing Circuits (RC Timers): When combined with a resistor, a capacitor can create precise time delays.
  • Tuning Circuits: Used in radios and TVs to select a specific frequency from a range of signals.

Conclusion

Capacitors are fundamental building blocks of modern electronics. By understanding their simple structure—two plates separated by a dielectric—we can grasp their powerful ability to store energy in an electric field. Whether you are calculating capacitance with C = Q/V, combining them in series or parallel, or using them for filtering or timing, capacitors are indispensable tools for any electronics engineer or hobbyist.
