What is Electric Current? A Complete Guide to the Basics

Electric current is the lifeblood of all our electronic devices, from the smartphone in your pocket to the lights in your home. But what exactly is it? This guide breaks down the essential concepts of electric current, including its definition, formula, units, and different types.

What is Electric Current?

At its core, electric current is the rate of flow of electric charge through a material, known as a conductor. In most metal conductors, like copper wires, this electric charge is carried by tiny, negatively-charged particles called electrons.

A helpful way to visualize this is to think of water flowing through a pipe. The water molecules are like the electric charges (electrons), and the rate at which the water flows past a certain point is similar to the electric current.

The Basic Formula for Electric Current

To measure electric current, we use a simple and fundamental formula:

I = Q / t

Where:
I represents the Current, measured in amperes (A).
Q represents the Charge, measured in coulombs (C).
* t represents the Time over which the charge flows, measured in seconds (s).

In simple terms, this formula tells you that one ampere of current is equal to one coulomb of charge flowing past a point in one second.

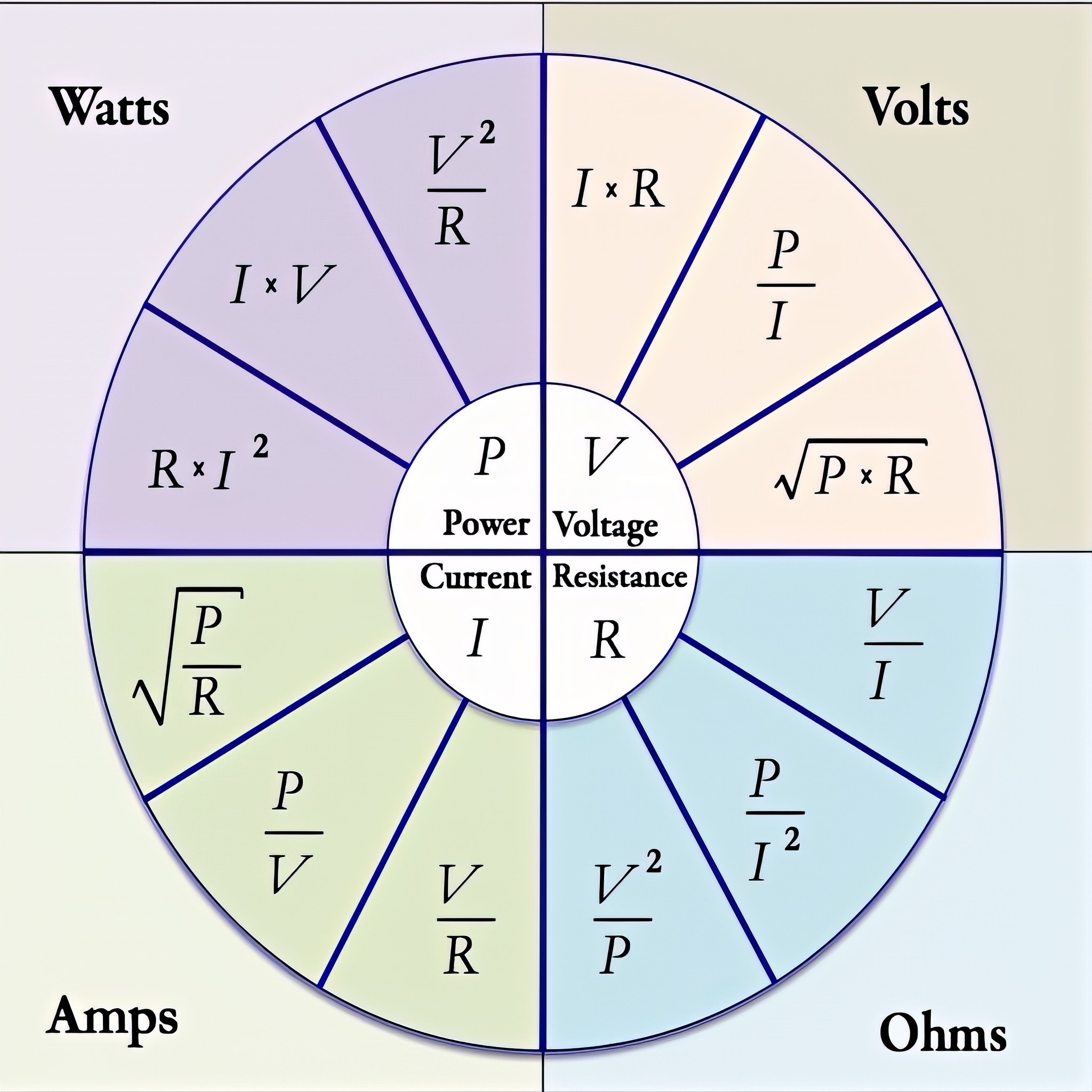

Key Electrical Units You Should Know

When discussing electricity, you'll frequently encounter these four key units:

  • Current (I): Measured in Amperes (A). It quantifies the flow of charge.
  • Charge (Q): Measured in Coulombs (C). It is the fundamental property of matter that experiences a force when placed in an electromagnetic field.
  • Voltage (V): Measured in Volts (V). It represents the electrical potential difference that "pushes" the current through the circuit.
  • Resistance (R): Measured in Ohms (Ω). It is the measure of opposition to the current flow in a circuit.

Direction of Current: Conventional vs. Electron Flow

One of the most common points of confusion is the direction of current. There are two conventions to describe it, and they flow in opposite directions.

Conventional Current

  • Direction: Flows from the positive (+) terminal to the negative (-) terminal of the power source (e.g., a battery).
  • Usage: This is the standard convention used by engineers and physicists for circuit analysis and diagrams. It was established before the discovery of the electron.

Electron Flow

  • Direction: Flows from the negative (-) terminal to the positive (+) terminal.
  • Usage: This describes the actual physical movement of electrons in a conductor. Since electrons are negatively charged, they are attracted to the positive terminal and repelled by the negative terminal.

While electron flow describes what is physically happening, conventional current is the standard used in all circuit diagrams and calculations.

Types of Current: DC vs. AC

Electric current can flow in two different ways: Direct Current (DC) and Alternating Current (AC).

Direct Current (DC)

Direct Current flows consistently in one single direction. It maintains a constant polarity.
* Examples: Power sources like batteries, solar cells, and the USB chargers for your phone all provide DC power.

Alternating Current (AC)

Alternating Current periodically reverses its direction. The flow of charge moves back and forth.
* Examples: The electricity supplied to our homes from wall sockets is AC. This type of current is more efficient for long-distance power transmission.


Frequently Asked Questions (FAQ)

Q1: What is the main unit of electric current?
A1: The main unit of electric current is the Ampere (A), often shortened to "amp."

Q2: How do you calculate electric current?
A2: You can calculate electric current using the formula I = Q / t, where I is the current, Q is the charge in coulombs, and t is the time in seconds.

Q3: Why do we still use conventional current if electron flow is the actual direction?
A3: Conventional current was the historical standard established by scientists like Benjamin Franklin before the electron was discovered. To avoid confusion and the need to rewrite decades of scientific literature and textbooks, the industry has continued to use conventional current (positive to negative) as the standard for circuit analysis.
