What is Voltage? A Simple Guide to Electric Pressure (V)

Answer 1

---

What is Voltage? A Simple Guide to Electric Pressure (V)

Voltage, often described as electric pressure, is a fundamental concept in electricity. It's the driving force that pushes charged electrons through a conducting loop, allowing them to do work, such as illuminating a light bulb.

This guide breaks down everything you need to know about voltage, from its basic definition and types to the formulas used to calculate it.

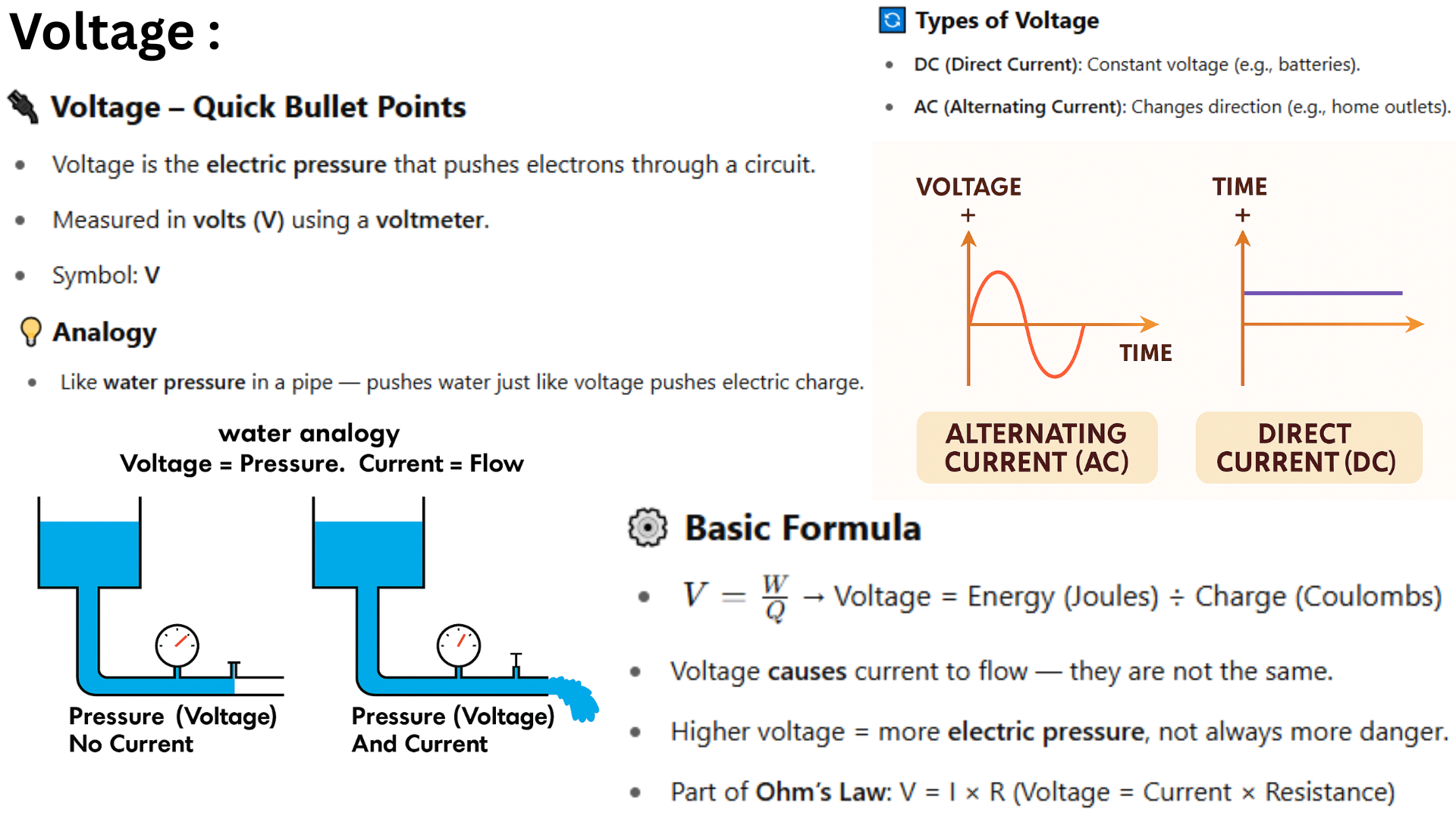

Voltage – The Basics

Here are the key points to understand about voltage:

• Definition: Voltage is the electric pressure or force that pushes electrons through a circuit.
• Measurement: It is measured in volts (V) using an instrument called a voltmeter.
• Symbol: The universal symbol for voltage is V.

The Water Analogy: Visualizing Voltage

One of the easiest ways to understand voltage is with the water analogy.

• Voltage = Pressure
• Current = Flow

Imagine two water tanks connected by a pipe. The pressure in the tank is like voltage. If the pipe is closed, there is still pressure (voltage) but no water flow (current). When you open the pipe, the pressure pushes the water, creating a flow. Similarly, voltage pushes electric charge, creating an electric current.

Types of Voltage: AC vs. DC

Voltage comes in two main types: Alternating Current (AC) and Direct Current (DC).

Direct Current (DC)

DC voltage is a constant voltage that flows in one direction. As shown in the graph, DC voltage remains at a steady level over time.
* Common Sources: Batteries, solar cells, and USB power adapters.

Alternating Current (AC)

AC voltage periodically changes direction, swinging from positive to negative. The graph for AC voltage is a sine wave.
* Common Sources: Power from home outlets and power grids.

Basic Voltage Formulas

Voltage can be calculated using a few key formulas:

1. Voltage, Energy, and Charge: This formula defines voltage as the potential energy per unit of charge.
   V = W / Q
   Where:

   *   **V** = Voltage (in Volts)
   *   **W** = Energy (in Joules)
   *   **Q** = Charge (in Coulombs)


2. Ohm's Law: This formula shows the relationship between voltage, current, and resistance in a circuit.
   V = I x R
   Where:

   *   **V** = Voltage (in Volts)
   *   **I** = Current (in Amps)
   *   **R** = Resistance (in Ohms)


Important Facts to Remember

• Voltage causes current to flow. They are related but are not the same thing. Voltage is the "push," while current is the "flow."
• Higher voltage means more electric pressure, but it is not always more dangerous. The level of danger from electricity depends on a combination of voltage and current.
