What is an Alternating Quantity?

Question

In the world of electronics and electrical systems, not all currents and signals are constant. Many change over time in a repeating pattern. This is known as an Alternating Quantity.

Answer 1

---

Understanding Alternating Quantities & Common Waveforms: A Visual Guide

In the world of electronics and electrical systems, not all currents and signals are constant. Many change over time in a repeating pattern. This is known as an Alternating Quantity.

What is an Alternating Quantity?

An alternating quantity is a value, like voltage or current, that periodically changes its direction and value. This concept is fundamental to understanding AC (Alternating Current) systems and is widely used in signal processing.

These alternating quantities are visualized as waveforms, which are graphs showing the quantity's amplitude over time. Let's explore the most common types.

Common Types of Waveforms

There are several primary waveforms, each with unique characteristics and applications.

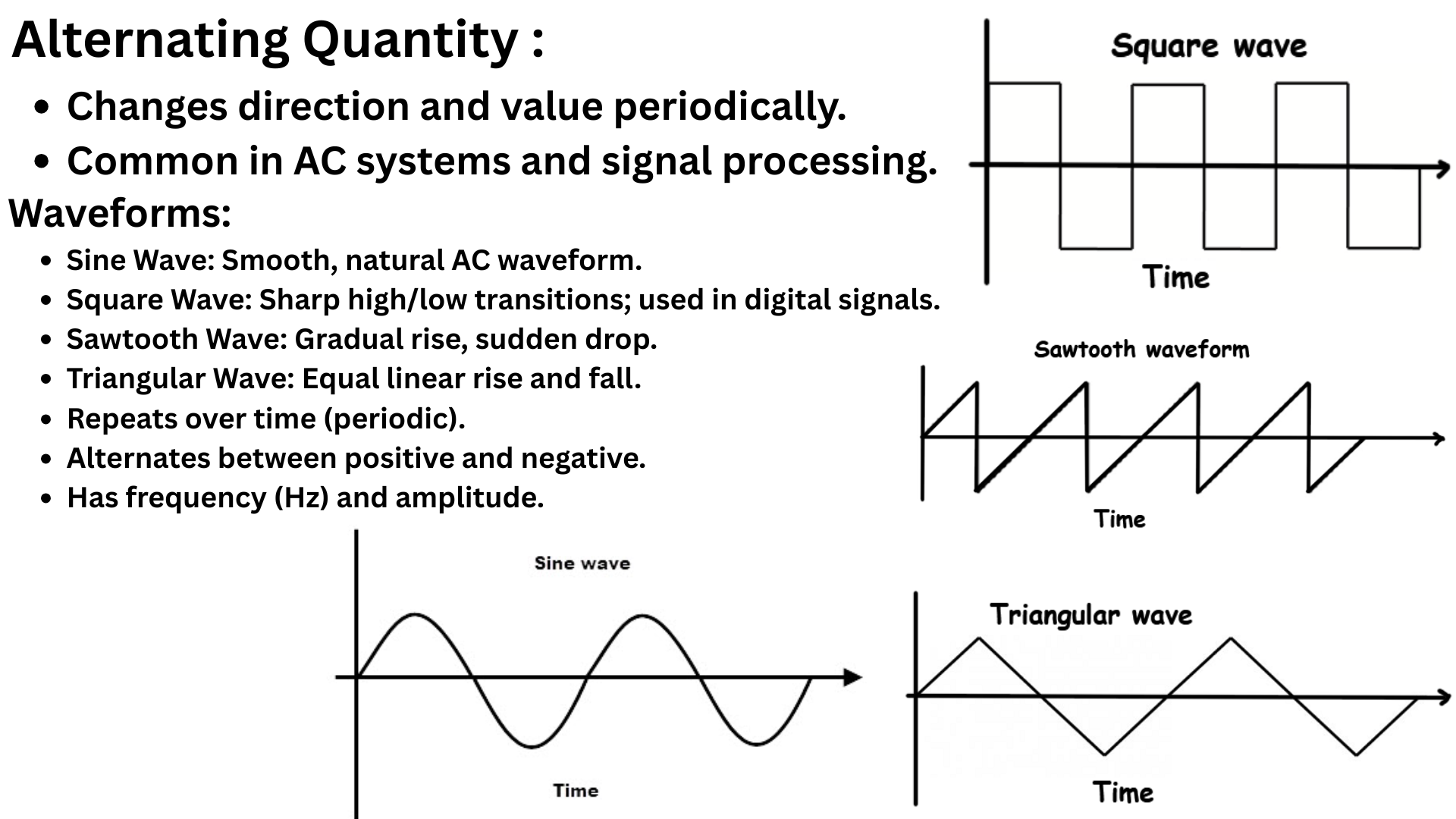

1. Sine Wave

• Description: The sine wave is a smooth, natural AC waveform. It has a continuous, oscillating curve that represents a gradual change in value.
• Common Uses: It is the standard waveform for mains electricity that powers our homes and is frequently found in audio signals and radio waves.

2. Square Wave

• Description: A square wave is defined by its sharp, almost instantaneous high and low transitions. It holds a constant positive value for a period, then instantly drops to a constant negative value.
• Common Uses: Because of its distinct on/off nature, the square wave is essential for digital signals, such as those used in computers and other digital electronics.

3. Sawtooth Wave

• Description: The sawtooth waveform gets its name from its resemblance to the teeth of a saw. It features a gradual, linear rise in value followed by a sudden drop back to the starting point.
• Common Uses: Sawtooth waves are often used in music synthesizers to create specific sounds and in the time-base generators for old CRT displays.

4. Triangular Wave

• Description: Similar to a sawtooth wave, the triangular wave has a linear change, but it features an equal linear rise and fall.
• Common Uses: This waveform is used in sound synthesis and for testing amplifiers and other electronic equipment.

Key Characteristics of All Alternating Waveforms

Despite their different shapes, all these waveforms share several key properties:

• They repeat over time (periodic): Each wave completes a full cycle in a specific amount of time, known as its period, and then repeats that cycle.
• They alternate between positive and negative: The waveform's value moves above and below the central zero line.
• They have frequency (Hz) and amplitude:
  • Frequency: The number of cycles that occur per second, measured in Hertz (Hz).
  • Amplitude: The peak or maximum value of the wave, measured from the center line.
