What is an AC Waveform?

0 like 0 dislike

1 Answer

āœ”ļø
Best answer


Understanding the AC Waveform: A Complete Guide

An AC (Alternating Current) waveform is a fundamental concept in electronics and electrical engineering. It graphically represents how alternating voltage or current changes over time. The most common type of AC waveform is a sine wave, as depicted in the image.

Let's break down the key characteristics of a standard AC waveform.

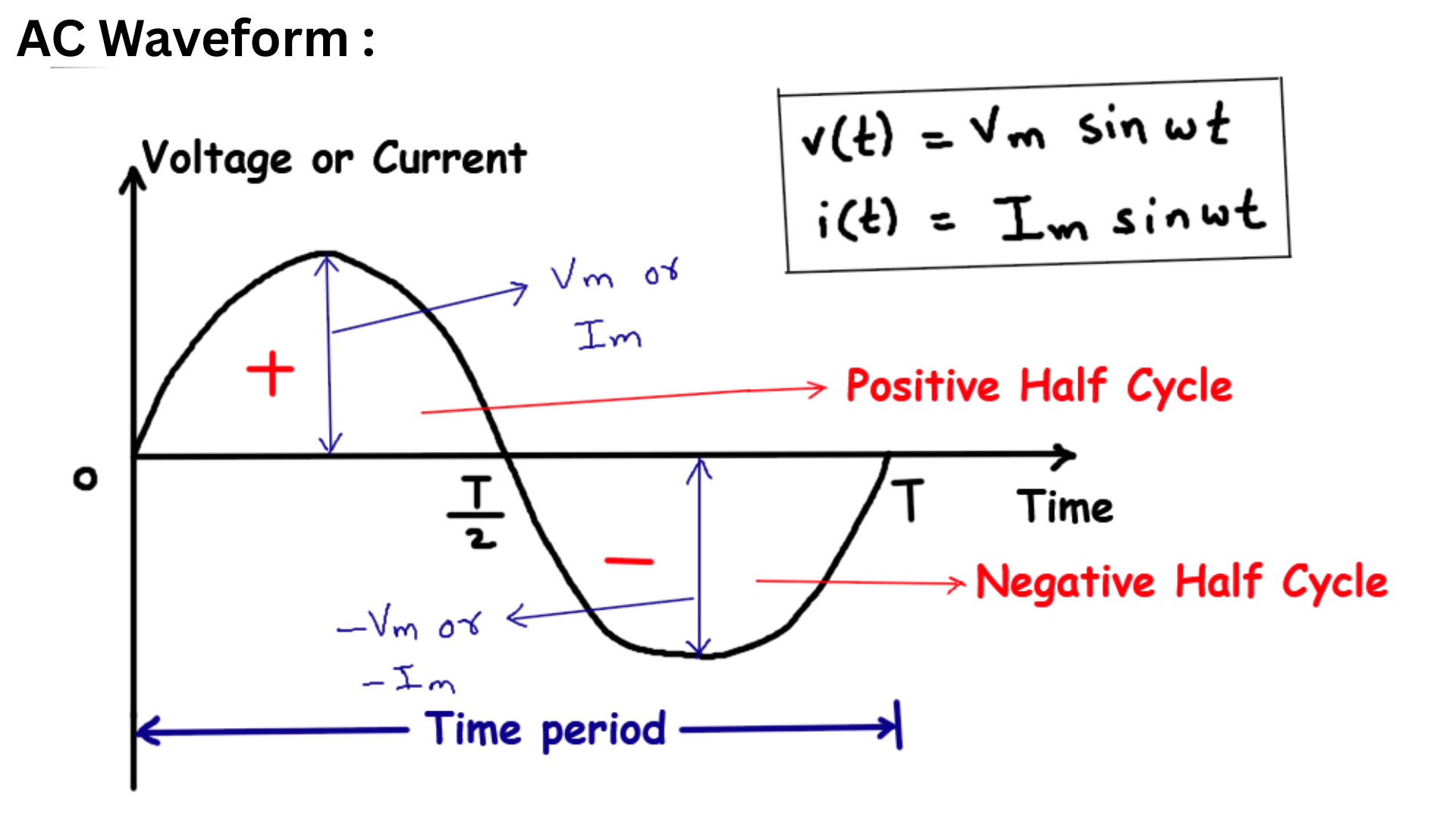

Key Components of the AC Waveform Graph
  • Vertical Axis (Voltage or Current): This axis represents the instantaneous magnitude, or amplitude, of the electrical signal at any given moment. It can be measured in Volts (for voltage) or Amperes (for current).
  • Horizontal Axis (Time): This axis represents the passage of time (t), showing how the signal's amplitude varies as time progresses.

Essential Characteristics of an AC Waveform

1. Positive and Negative Half Cycles

Because the current and voltage alternate their direction, the waveform is split into two main parts within a single cycle:

  • Positive Half Cycle: This is the portion of the wave that lies above the horizontal time axis. During this interval, the voltage or current flows in the positive direction. In the diagram, this occurs between time 0 and T/2.
  • Negative Half Cycle: This is the portion of the wave that lies below the time axis. Here, the voltage or current has reversed and is now flowing in the negative direction. This occurs between time T/2 and T.
2. Amplitude (Peak Value: Vm or Im)

The amplitude refers to the maximum value that the waveform reaches from the center (zero) line. This is also known as the peak value.

  • Vm (Peak Voltage): The maximum voltage value reached during the positive half cycle.
  • Im (Peak Current): The maximum current value reached during the positive half cycle.
  • The lowest point of the waveform represents the negative peak value, denoted as -Vm or -Im.
3. Time Period (T)

The Time Period (T) is the total time required for the waveform to complete one full cycle. A full cycle consists of one complete positive half cycle and one complete negative half cycle. After this period, the waveform pattern repeats itself. The time period is typically measured in seconds.

4. Instantaneous Value (v(t) or i(t))

The value of the voltage or current at any specific point in time is called its instantaneous value. It can be calculated using the following standard equations for a sinusoidal waveform:

  • Instantaneous Voltage: v(t) = Vm sin(ωt)
  • Instantaneous Current: i(t) = Im sin(ωt)

Where:
v(t) or i(t) is the instantaneous value at time t.
Vm or Im is the peak amplitude.
ω (omega) is the angular frequency of the wave.
t is the specific point in time.

Understanding these elements is crucial for analyzing AC circuits and is the foundation for more advanced topics like frequency, phase, and RMS values.

0 like 0 dislike
