Generation of AC Voltage: A Simple Guide to How AC Generators Work
Alternating Current (AC) voltage is the foundation of the power grids that light up our homes and run our industries. But how is this essential form of electrical energy created? The answer lies in a remarkable device called an AC generator, which operates on a fundamental principle of physics.

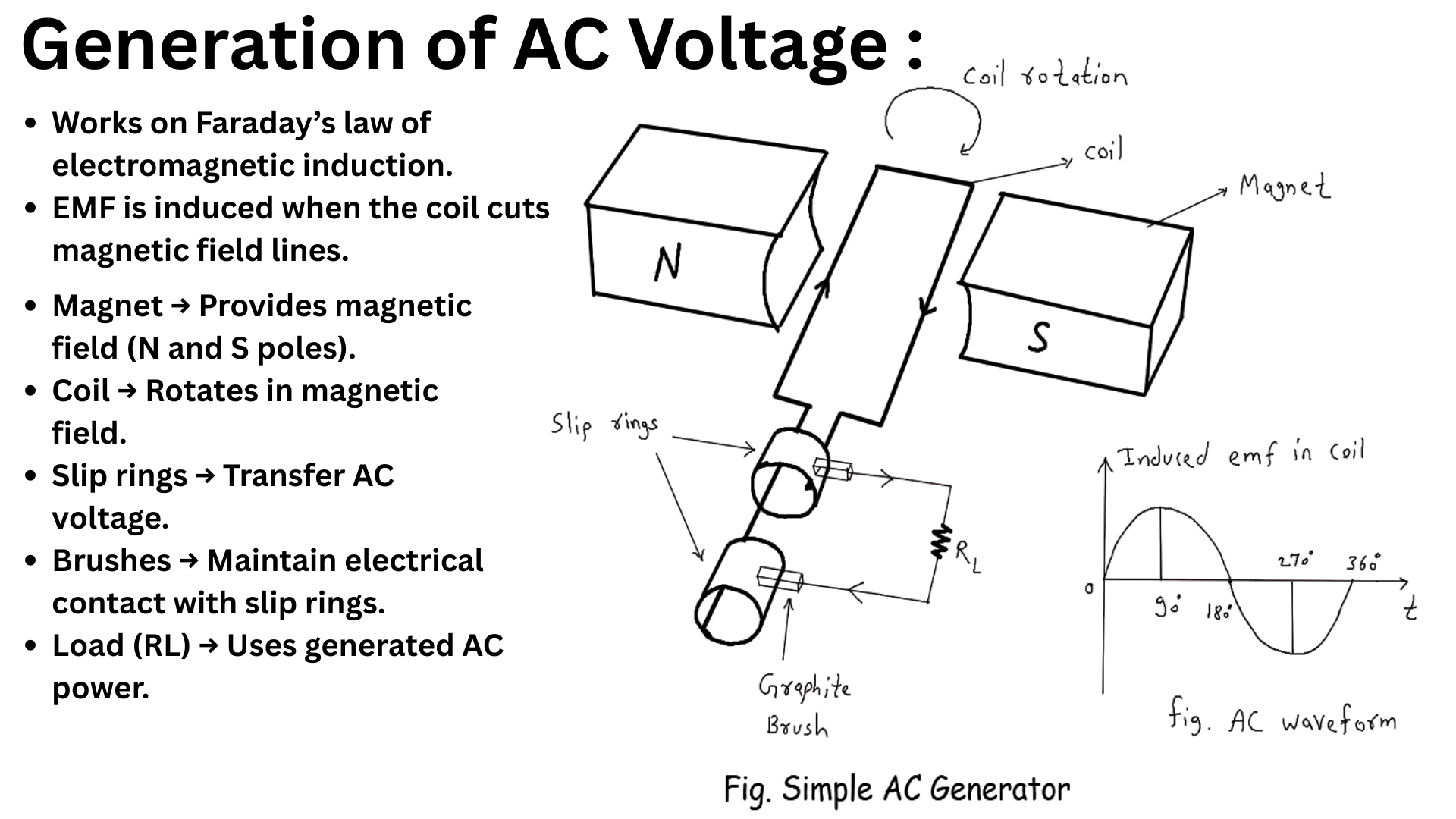

This article breaks down the process of AC voltage generation, explaining the key components and working principles as illustrated in the simple AC generator diagram.
The Core Principle: Faraday's Law of Electromagnetic Induction
The generation of AC voltage is governed by Faraday's Law of Electromagnetic Induction. This law states that a voltage (or electromotive force, EMF) is induced in a conductor when it is exposed to a changing magnetic field.
In an AC generator, this is achieved by rotating a coil of wire within a magnetic field. As the coil turns, it continuously "cuts" through the magnetic field lines, causing a voltage to be induced in the coil. The magnitude and direction of this voltage change as the coil rotates, giving rise to the alternating nature of AC.
Key Components of a Simple AC Generator
An AC generator consists of several essential parts that work together to produce electricity.
- Magnet: The generator uses a powerful magnet (or an electromagnet) to create a steady magnetic field. The field lines travel from the North pole (N) to the South pole (S).
- Coil (or Armature): This is a loop of wire designed to rotate within the magnetic field. When an external force (like a turbine) spins the coil, it cuts the magnetic field lines, which induces the EMF.
- Slip Rings: These are two separate copper rings connected to the two ends of the coil. They rotate along with the coil and are the key components that allow the current to be transferred to the external circuit as an alternating current. Each ring is always in contact with the same brush.
- Brushes: Made of a conductive material like graphite, these stationary brushes lightly press against the rotating slip rings. Their job is to maintain continuous electrical contact, collecting the current from the slip rings and transferring it to the external circuit.
- Load (RL): The load represents any device that consumes the generated AC power, such as a light bulb, motor, or appliance. It is connected across the brushes to complete the circuit.
How it Works: The AC Waveform Explained
The rotation of the coil produces a sinusoidal AC waveform, where the voltage continuously changes direction and magnitude. Let's trace one full 360° rotation:
- 0° Position: The coil is vertical, moving parallel to the magnetic field. It cuts no field lines, so the induced EMF is zero.
- 90° Position: The coil rotates to a horizontal position. Here, its sides are moving perpendicular to the magnetic field, cutting the field lines at the maximum possible rate. This induces the peak positive voltage.
- 180° Position: The coil is vertical again but has flipped over. Once more, it moves parallel to the field, and the induced EMF drops back to zero.
- 270° Position: The coil is horizontal again, cutting the field lines at a maximum rate. However, the sides of the coil have swapped positions, so the current flows in the opposite direction. This induces the peak negative voltage.
- 360° Position: The coil completes one full rotation and returns to its starting position. The induced EMF is back to zero, and the cycle is ready to repeat.
This continuous cycle of rising to a positive peak, falling to zero, dropping to a negative peak, and returning to zero is what defines AC voltage and creates its signature sinusoidal waveform.
