Question

What is Power Factor , Unity , Lagging & Leading Power Factor Explain

Answer 1

The Complete Guide to Power Factor

Part 1: An Intuitive Analogy - Pulling a Barge on a Canal

Imagine you need to pull a heavy barge along a canal. The barge can only move forward in the canal.

• Scenario A: Ideal Effort
  You stand directly in front of the barge and pull it straight forward. 100% of your pulling effort goes into moving the barge along the canal. This is the most efficient way to do the work.

• Scenario B: Realistic Effort
  You can't walk on water, so you have to stand on the towpath next to the canal and pull the barge with a rope at an angle. Now, your total pulling effort is split into two components:
  1. A Forward Component: This is the part of your effort that actually pulls the barge along the canal. This is the useful work.
  2. A Sideways Component: This part of your effort pulls the barge towards the side of the canal. This component does no useful work in moving the barge forward, but it is an unavoidable consequence of pulling from an angle. It's a "wasted" but necessary effort.

In this analogy:
The Forward Component is like Real Power (P). It's the power that performs the actual, useful work (lighting a bulb, turning a motor's shaft). It is measured in Watts (W) or Kilowatts (kW).
The Sideways Component is like Reactive Power (Q). It does no useful work, but it is essential for the operation of certain types of equipment (like motors and transformers) to create magnetic fields. It is measured in Volt-Amps Reactive (VAR) or kiloVAR (kVAR).
* Your Total Effort (the tension in the rope) is like Apparent Power (S). It is the total power that the utility company must supply to your facility—the combination of the useful and non-useful components. It is measured in Volt-Amps (VA) or kiloVolt-Amps (kVA).

Power Factor is the ratio of your useful work to your total effort.

Power Factor = Real Power (P) / Apparent Power (S)

A Power Factor of 1.0 (or 100%) means you are pulling straight (Scenario A). All the power supplied is doing useful work. A low Power Factor means you are pulling at a sharp angle (Scenario B), and a large portion of the supplied power is not doing useful work.

---

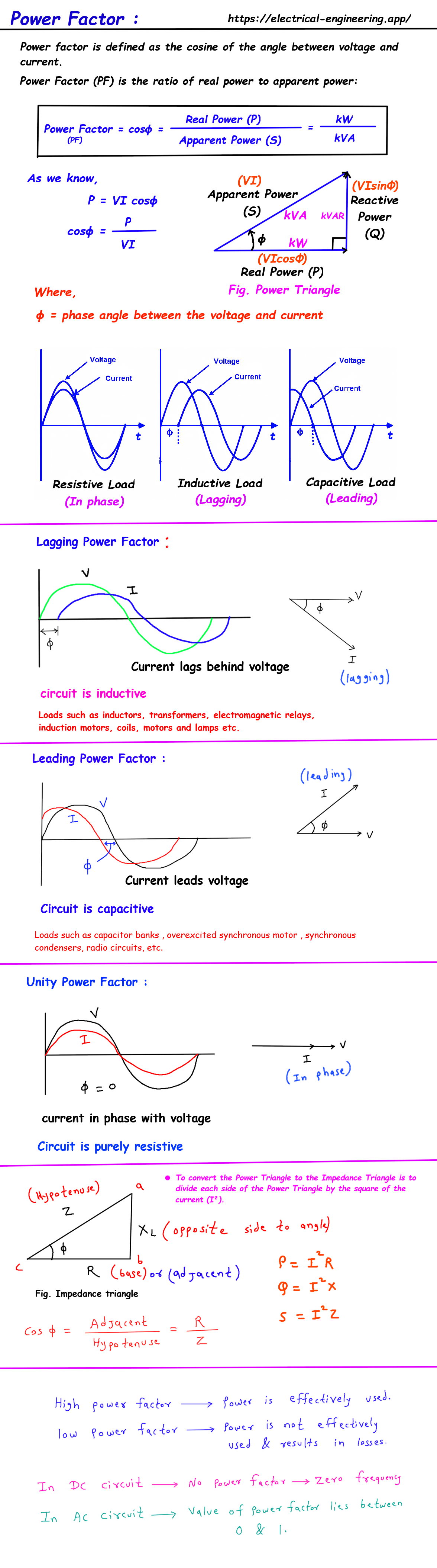

Part 2: The Technical Explanation - AC Waveforms and the Power Triangle

In a Direct Current (DC) circuit, power is simple: Power = Voltage x Current.

In an Alternating Current (AC) circuit, both voltage and current are constantly changing, represented by sine waves. These two waves can be perfectly synchronized or they can be "out of sync." This out-of-sync relationship is called the phase angle, denoted by the Greek letter theta (θ).

The relationship between the three types of power (P, Q, and S) is mathematically and visually represented by the Power Triangle, a right-angled triangle.

• Adjacent Side (Horizontal): Real Power (P)
• Opposite Side (Vertical): Reactive Power (Q)
• Hypotenuse: Apparent Power (S)
• Angle (θ): The Phase Angle between the voltage and current waveforms.

From basic trigonometry, we know that the cosine of the angle is the ratio of the adjacent side to the hypotenuse:
cos(θ) = Adjacent / Hypotenuse = P / S

This is the precise mathematical definition of Power Factor.

Power Factor (PF) = cos(θ)

The cause of this phase angle (θ) is the type of electrical load connected to the circuit.

1. Resistive Loads: (e.g., electric heaters, incandescent bulbs). These loads convert electrical energy directly into heat or light. They only consume Real Power. The voltage and current waveforms are perfectly aligned. Phase Angle (θ) = 0°.
2. Inductive Loads: (e.g., motors, transformers, solenoids). These loads use magnetic fields to operate. Creating and sustaining these magnetic fields requires Reactive Power. In an inductive load, the current builds up more slowly than the voltage, causing the current waveform to LAG behind the voltage waveform.
3. Capacitive Loads: (e.g., capacitors, synchronous condensers). These loads use electric fields to operate. They can be thought of as "supplying" Reactive Power to the system. In a capacitive load, current "rushes in" to charge the capacitor before the voltage fully builds up, causing the current waveform to LEAD the voltage waveform.

This brings us to the specific terms you asked about.

---

Part 3: Unity, Lagging, and Leading Power Factor Explained in Detail

1. Unity Power Factor (PF = 1.0)

• Definition: This is the ideal and most efficient state for an electrical system. A power factor of 1.0 means that all the power being delivered to the load is being used to perform useful work.
• Phase Angle: The phase angle (θ) between the voltage and current waveforms is 0 degrees. The peaks and zero-crossings of the two waves occur at the exact same time. They are perfectly "in-phase."
• Type of Load: This occurs in a purely resistive load. It can also be achieved in a complex system if the inductive and capacitive effects perfectly cancel each other out.
• Power Triangle: In this state, the Reactive Power (Q) is zero. The power triangle collapses into a horizontal line, where the length of the Real Power (P) is exactly equal to the length of the Apparent Power (S).
• Significance: This is the goal of power system design and operation. It means the utility is supplying the minimum possible Apparent Power (and thus minimum current) to deliver the required Real Power.

2. Lagging Power Factor (0 < PF < 1.0, Lagging)

• Definition: This indicates that the load is consuming reactive power to create magnetic fields. It is the most common power factor condition found in industrial and commercial environments due to the prevalence of electric motors.
• Phase Angle: The current waveform is behind the voltage waveform. The phase angle (θ) is a positive value (e.g., +36.87°, which corresponds to a PF of 0.8).
• Type of Load: This is caused by a dominance of inductive loads. Every AC motor, transformer, and ballast for a fluorescent light contributes to a lagging power factor. These devices require reactive power (VARs) to function.
• Power Triangle: The triangle has a positive vertical component. The Reactive Power (Q) is positive and points upwards, representing the inductive reactive power being consumed by the load.
• Mnemonic: A classic way to remember this is the phrase "ELI the ICE man."
  • ELI: In an inductive (L) circuit, Voltage (E) comes before Current (I). Therefore, Current Lags Voltage.

3. Leading Power Factor (0 < PF < 1.0, Leading)

• Definition: This indicates that the load is acting as a source of reactive power, supplying it back to the power system. This condition is less common and is often created intentionally.
• Phase Angle: The current waveform is ahead of the voltage waveform. The phase angle (θ) is a negative value (e.g., -36.87°).
• Type of Load: This is caused by a dominance of capacitive loads. Large banks of capacitors are the most common source. Lightly loaded synchronous motors (running in an over-excited state) and very long underground power cables can also create a leading power factor.
• Power Triangle: The triangle has a negative vertical component. The Reactive Power (Q) is negative and is typically drawn pointing downwards, representing the capacitive reactive power being supplied by the load to the system.
• Mnemonic: Continuing with "ELI the ICE man."
  • ICE: In a capacitive (C) circuit, Current (I) comes before Voltage (E). Therefore, Current Leads Voltage.

---

Part 4: Why Power Factor Matters - The Practical Consequences

A low power factor (either lagging or leading, but usually lagging) is undesirable and has significant negative consequences.

Let's use the formula: Real Power (P) = Voltage (V) x Current (I) x Power Factor (PF)
Rearranging for Current: Current (I) = P / (V x PF)

Example: A manufacturing plant needs 1,000 kW of Real Power to run its machinery at a voltage of 480V.

• Case 1: Near Unity PF (PF = 0.98)
  Current = 1,000,000 W / (480 V x 0.98) = 2126 Amps

• Case 2: Poor Lagging PF (PF = 0.70)
  Current = 1,000,000 W / (480 V x 0.70) = 2976 Amps

To get the same 1000 kW of useful work, the system with poor power factor must draw 850 more amps of current! This higher current has four major consequences:

1. Higher Utility Bills: Utility companies must build their generators, transformers, and power lines to handle the total Apparent Power (kVA), not just the useful Real Power (kW). To discourage inefficiency, they often bill large customers based on their kVA demand or impose a "Power Factor Penalty" if the PF drops below a certain threshold (e.g., 0.95).

2. Increased Energy Losses: The energy lost as heat in wires is calculated by the formula P_loss = I²R (Current squared times Resistance). Since the current is significantly higher with a low PF, the heat losses in the entire electrical system—from the power plant all the way to the factory's internal wiring—are drastically increased. This is pure wasted energy that you still have to pay for.
   * In our example, the current is 2976 / 2126 = 1.4 times higher. The energy losses (I²) will be 1.4² = 1.96 times higher—nearly double the waste!

3. Reduced System Capacity: Every piece of electrical equipment (wires, circuit breakers, transformers) is rated for a maximum current it can safely handle. A low power factor means you are using up this current-carrying capacity to transmit non-working reactive power, leaving less capacity for actual work. A 1000 kVA transformer can supply 1000 kW of power at a PF of 1.0, but it can only supply 700 kW at a PF of 0.7 before it is fully loaded.

4. Voltage Drops: Higher current flowing through the resistance of long cables causes a larger voltage drop (V_drop = I x R). This can lead to equipment at the end of the line receiving insufficient voltage, causing motors to overheat, run inefficiently, and have a shorter lifespan.

Summary & Power Factor Correction

| Feature | Unity Power Factor | Lagging Power Factor | Leading Power Factor |
| :--- | :--- | :--- | :--- |
| PF Value | 1.0 | < 1.0 | < 1.0 |
| Phase Angle (θ) | 0° | Positive (Current lags Voltage) | Negative (Current leads Voltage) |
| Dominant Load | Resistive | Inductive (Motors, Transformers) | Capacitive (Capacitors) |
| Reactive Power (Q) | Zero | Consumed by the load (Magnetic Fields) | Supplied by the load (Electric Fields) |
| Efficiency | Highest (Minimum current for work done) | Lower (Higher current for same work) | Lower (Higher current for same work) |
| Commonly Found | Ideal circuits, electric heaters | Vast majority of industrial facilities | Facilities with capacitor banks |

Because the most common problem is a poor lagging power factor from motors, the standard solution is Power Factor Correction. This involves installing capacitor banks in parallel with the inductive loads. The leading effect of the capacitors directly counteracts the lagging effect of the motors, canceling out the reactive power and bringing the facility's overall power factor closer to a perfect 1.0. This lowers the total current drawn from the utility, eliminates penalty fees, reduces energy waste, and frees up electrical system capacity.
