Question

What Is Instantaneous Value in AC Circuits?

Answer 1

---

What Is Instantaneous Value in AC Circuits? Definition & Graph Explained

When working with Alternating Current (AC), quantities like voltage and current are not constant. They continuously change their magnitude and direction over time, most commonly in the pattern of a sine wave. To analyze an AC circuit's behavior at a specific moment, we need to determine its value at that exact point. This is where the concept of instantaneous value becomes essential.

Defining Instantaneous Value

The instantaneous value is the precise magnitude of an alternating quantity (like voltage or current) at a particular instant of time.

In other words, if you could pause an AC waveform at any point in its cycle, the value you measure at that frozen moment is its instantaneous value.

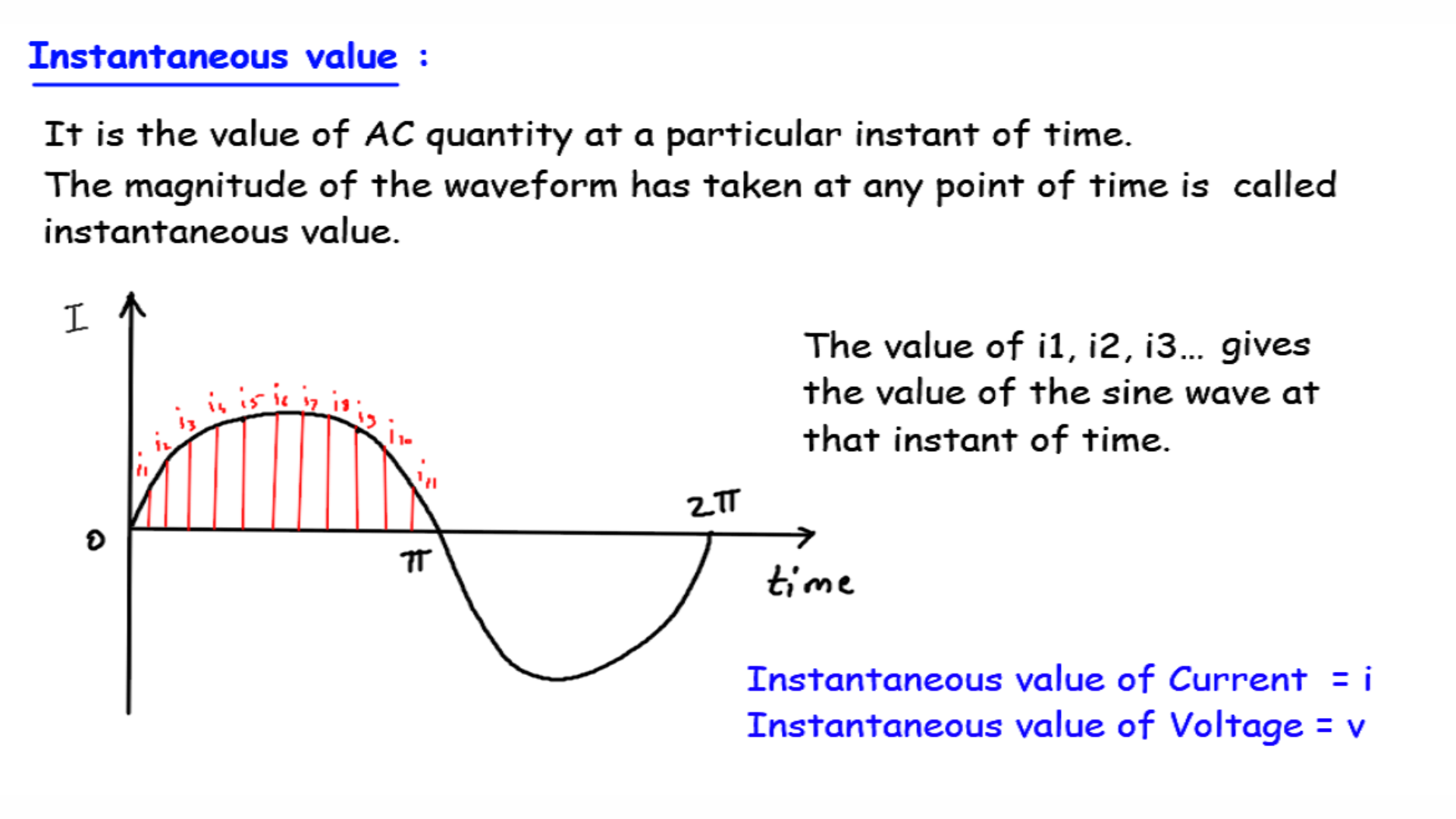

Visualizing Instantaneous Value with a Graph

The graph above helps illustrate this concept perfectly:

• The Waveform: The black curve is a sine wave representing an AC current (I) varying over time (t).
• Axes: The vertical axis (Y-axis) shows the magnitude of the current, while the horizontal axis (X-axis) represents the progression of time. The waveform completes one full cycle at 2π.
• Instantaneous Points: The red vertical lines, labeled i1, i2, i3, ... i11, represent the instantaneous values of the current at different moments. Each line shows the exact magnitude of the current at that specific point in time. For example, i7 is the value of the current at the instant it reaches its peak, while i11 is a smaller value as the current heads back towards zero.

Standard Notation

In electrical and electronics engineering, it's conventional to use lowercase letters to denote instantaneous values. This helps distinguish them from other fixed values like peak (maximum) or RMS values.

• Instantaneous value of Current = i
• Instantaneous value of Voltage = v

This notation signifies that the value is variable and dependent on time, often written as i(t) or v(t).

Frequently Asked Questions (FAQ)

Q1: What is the difference between instantaneous value and peak value?
A: The instantaneous value is the value of the waveform at any given moment. The peak value (or amplitude) is the single maximum instantaneous value that the waveform reaches during its positive or negative half-cycle. In the graph above, i7 represents the peak value.

Q2: Is the instantaneous value always positive?
A: No. For a standard AC sine wave, the instantaneous value is positive during the first half-cycle (from 0 to π) and negative during the second half-cycle (from π to 2π).

Q3: How is the instantaneous value of a sine wave calculated?
A: You can calculate the instantaneous value of voltage or current using the following standard equations:
`v(t) = Vm sin(ωt + φ) for voltage * i(t) = Im * sin(ωt + φ)` for current

Where Vm and Im are the peak values, ω is the angular frequency, t is the time, and φ is the phase angle.
