What is Electrical Resistance (R)?
1 Answer

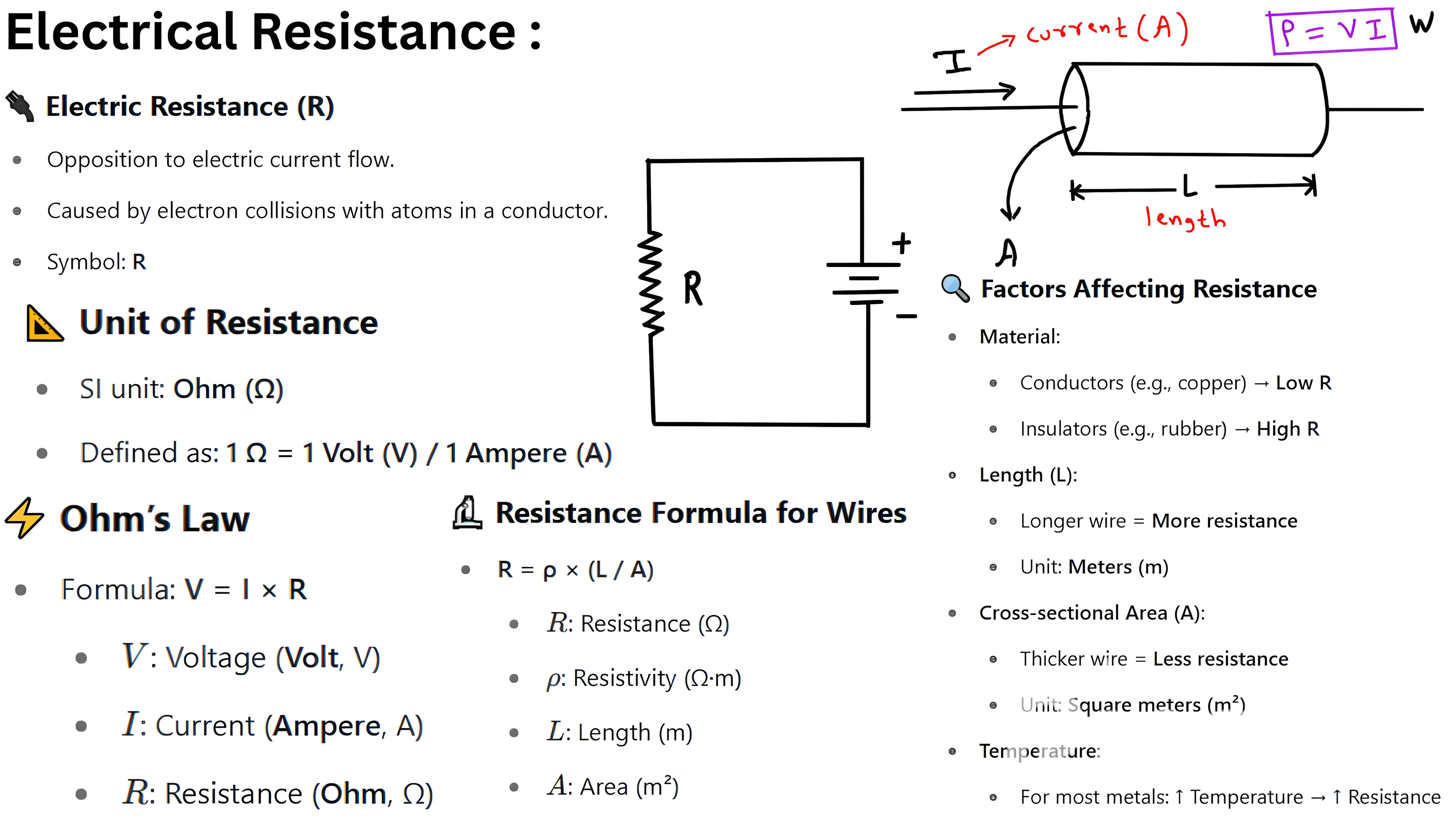

Understanding Electrical Resistance: A Complete Guide
Electrical resistance is a fundamental concept in the study of electricity and electronics. It governs how current flows through a circuit and is crucial for designing everything from simple light bulbs to complex microprocessors. This guide breaks down what electrical resistance is, how to measure it, the factors that influence it, and the key formulas you need to know.
What is Electrical Resistance (R)?
Electrical resistance is the measure of opposition to the flow of electric current in a conductor. Think of it as electrical friction. As electrons move through a conductor, they collide with the atoms of the material, which hinders their movement.
- Primary Function: It opposes the flow of electric current.
- Cause: It is caused by countless collisions between the free-moving electrons and the fixed atoms within a conductor.
- Symbol: In electrical formulas and diagrams, resistance is represented by the symbol R.
Unit of Resistance: The Ohm (Ω)
The standard (SI) unit for measuring electrical resistance is the Ohm, named after German physicist Georg Ohm. The symbol for Ohm is the Greek letter omega (Ω).
An Ohm is defined as:
1 Ohm (Ω) = 1 Volt (V) / 1 Ampere (A)
This means that if a potential difference of 1 Volt across a component causes a current of 1 Ampere to flow through it, that component has a resistance of 1 Ohm.
Ohm's Law: The Core Relationship
Ohm's Law describes the fundamental relationship between voltage, current, and resistance in an electrical circuit. It is one of the most important principles in electronics.
The formula for Ohm's Law is:
V = I × R
Where:
V is the Voltage (potential difference), measured in Volts (V).
I is the Current, measured in Amperes (A).
* R is the Resistance, measured in Ohms (Ω).
This formula can be rearranged to solve for any of the variables, making it essential for circuit analysis.
Factors Affecting Electrical Resistance
The resistance of a specific object, like a wire, is not random. It depends on four key physical factors:
Material (Resistivity): Different materials inherently resist current flow by different amounts. This intrinsic property is called resistivity (ρ).
Conductors (e.g., copper, silver) have low resistivity and therefore offer low resistance.
Insulators (e.g., rubber, glass) have high resistivity and offer very high resistance.Length (L): The resistance of a conductor is directly proportional to its length.
* Longer wire = More resistance. This is because electrons have to travel a longer path, leading to more collisions.Cross-Sectional Area (A): Resistance is inversely proportional to the cross-sectional area of the conductor.
* Thicker wire = Less resistance. A larger area provides more pathways for the electrons to flow, reducing overall opposition.Temperature: The temperature of the conductor can significantly impact its resistance.
* For most metals (like copper), an increase in temperature causes an increase in resistance. This is because higher temperatures cause the atoms in the conductor to vibrate more, increasing the frequency of electron collisions.
How to Calculate Resistance (Formula for Wires)
Using the factors above, we can calculate the resistance of a wire with a specific formula:
R = ρ × (L / A)
Where:
R is the Resistance in Ohms (Ω).
ρ (rho) is the Resistivity of the material in Ohm-meters (Ω·m).
L is the Length of the wire in meters (m).
A is the Cross-sectional Area of the wire in square meters (m²).
This formula is fundamental for engineering and physics, allowing for the precise calculation of a component's resistance based on its physical properties.
