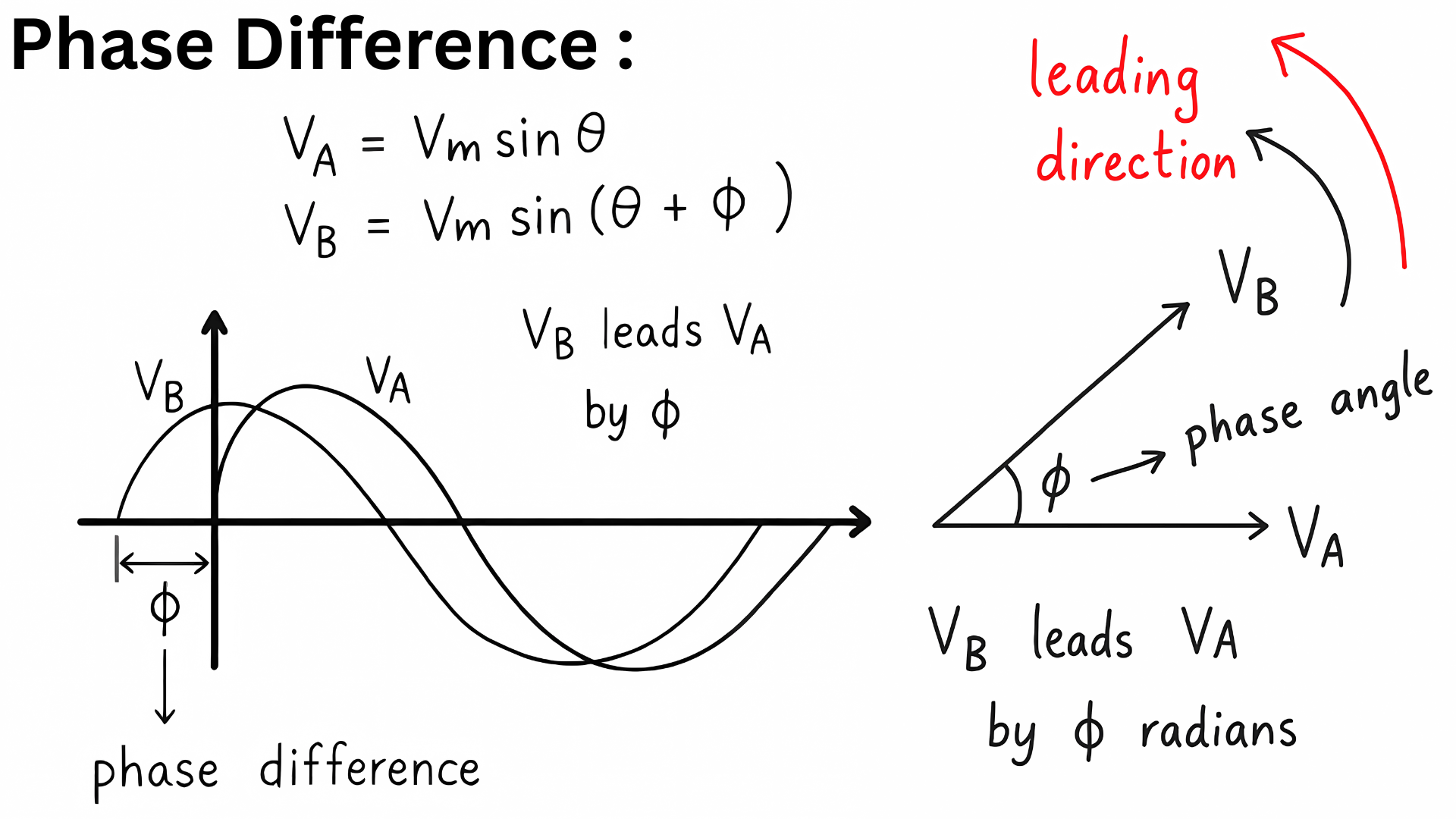

A detailed diagram explaining the concept of phase difference using waveforms and a phasor diagram. On the left, a graph shows two sinusoidal waves, VA and VB. Wave VB is shifted to the left of wave VA, with the horizontal distance between their corresponding zero-crossings labeled as 'φ phase difference'. The text states, "VB leads VA by φ". On the right, a phasor diagram shows the vector VA on the horizontal axis and the vector VB rotated counter-clockwise by an angle 'φ', which is labeled the 'phase angle'. A red curved arrow indicates that the counter-clockwise direction is the 'leading direction'. Mathematical formulas VA = Vm sin θ and VB = Vm sin(θ + φ) are displayed at the top.

---

Understanding Phase Difference: A Guide to Leading & Lagging Waves in AC Circuits

In the study of alternating current (AC) circuits, signal processing, and wave mechanics, phase difference is a fundamental concept that describes the timing relationship between two or more periodic waves of the same frequency. It essentially measures how much one wave is "ahead" or "behind" another. The provided image offers an excellent visual explanation of this concept using both waveform graphs and phasor diagrams.

What is Phase Difference?

Phase difference (often denoted by the Greek letter phi, φ) is the angular separation between two points on different waves that have the same frequency. It's typically measured in degrees or radians.

• In-Phase: If two waves have a phase difference of 0° (or 360°), they are perfectly aligned. They reach their peaks, troughs, and zero-crossings at the exact same time.
• Out-of-Phase: If the waves are not aligned, they are out-of-phase. The image illustrates a specific case of this, known as a leading phase.

Visualizing Phase Difference: Waveforms vs. Phasors

The image expertly uses two common methods to represent phase difference:

1. The Waveform Diagram (Time-Domain)

The graph on the left shows two sinusoidal voltages, VA and VB, plotted over time or angle.

• Reference Wave (VA): The wave VA starts at zero and follows a standard sine curve, represented by the formula VA = Vm sin θ.
• Leading Wave (VB): The wave VB is shifted to the left compared to VA. This means that VB reaches its key points (like its peak value and zero-crossing) earlier than VA. Because it occurs earlier, we say that VB leads VA.
• The Phase Angle (φ): The horizontal distance between the corresponding points of the two waves (for example, their rising zero-crossings) represents the phase difference, φ. Mathematically, this leading relationship is shown by adding the phase angle in the sine function: VB = Vm sin(θ + φ).

2. The Phasor Diagram (Frequency-Domain)

A phasor is a vector used to represent a sinusoidal quantity's amplitude and phase angle. Phasor diagrams simplify the analysis of AC circuits.

• Reference Phasor (VA): The phasor for VA is typically drawn along the positive horizontal axis, acting as the reference.
• Leading Phasor (VB): Since VB leads VA by an angle φ, its phasor is drawn at an angle φ rotated in the counter-clockwise direction from VA. The counter-clockwise direction is the standard convention for a leading phase.
• Phase Angle (φ): The angle between the two phasors directly shows the phase difference.

Leading vs. Lagging Phase: A Simple Rule

Understanding the difference between "leading" and "lagging" is crucial.

• Leading Phase (+φ): As shown in the image, a quantity leads another if it occurs earlier in time. In the formula, this is represented by a positive (+) phase angle, e.g., sin(θ + φ). On a phasor diagram, the leading phasor is rotated counter-clockwise.

• Lagging Phase (-φ): A quantity lags another if it occurs later in time. This would be represented by a negative (-) phase angle, e.g., sin(θ - φ). On a phasor diagram, the lagging phasor would be rotated clockwise from the reference.

Key Takeaways

• Phase Difference (φ): Measures the timing offset between two waves of the same frequency.
• Leading Wave: Appears shifted to the left on a waveform graph and is rotated counter-clockwise on a phasor diagram. Its formula has a +φ.
• Lagging Wave: Appears shifted to the right on a waveform graph and is rotated clockwise on a phasor diagram. Its formula has a -φ.
• Application: Understanding phase difference is essential for analyzing RLC circuits, power factor correction, and three-phase power systems in electrical engineering.
