Understanding Alternating Voltage (AC): Formula, Graph, and Key Terms Explained

Alternating Voltage, commonly known as AC voltage, is a fundamental concept in electronics and electrical engineering. Unlike Direct Current (DC), which flows in one direction, AC voltage periodically reverses its direction and continuously changes its magnitude over time. This behavior is typically represented by a sine wave.

This guide breaks down the essential components of alternating voltage, its formula, and the key relationships between its properties, as illustrated in the diagram.

The Core Formula for Alternating Voltage

The behavior of an alternating voltage can be described mathematically with a simple and powerful formula:

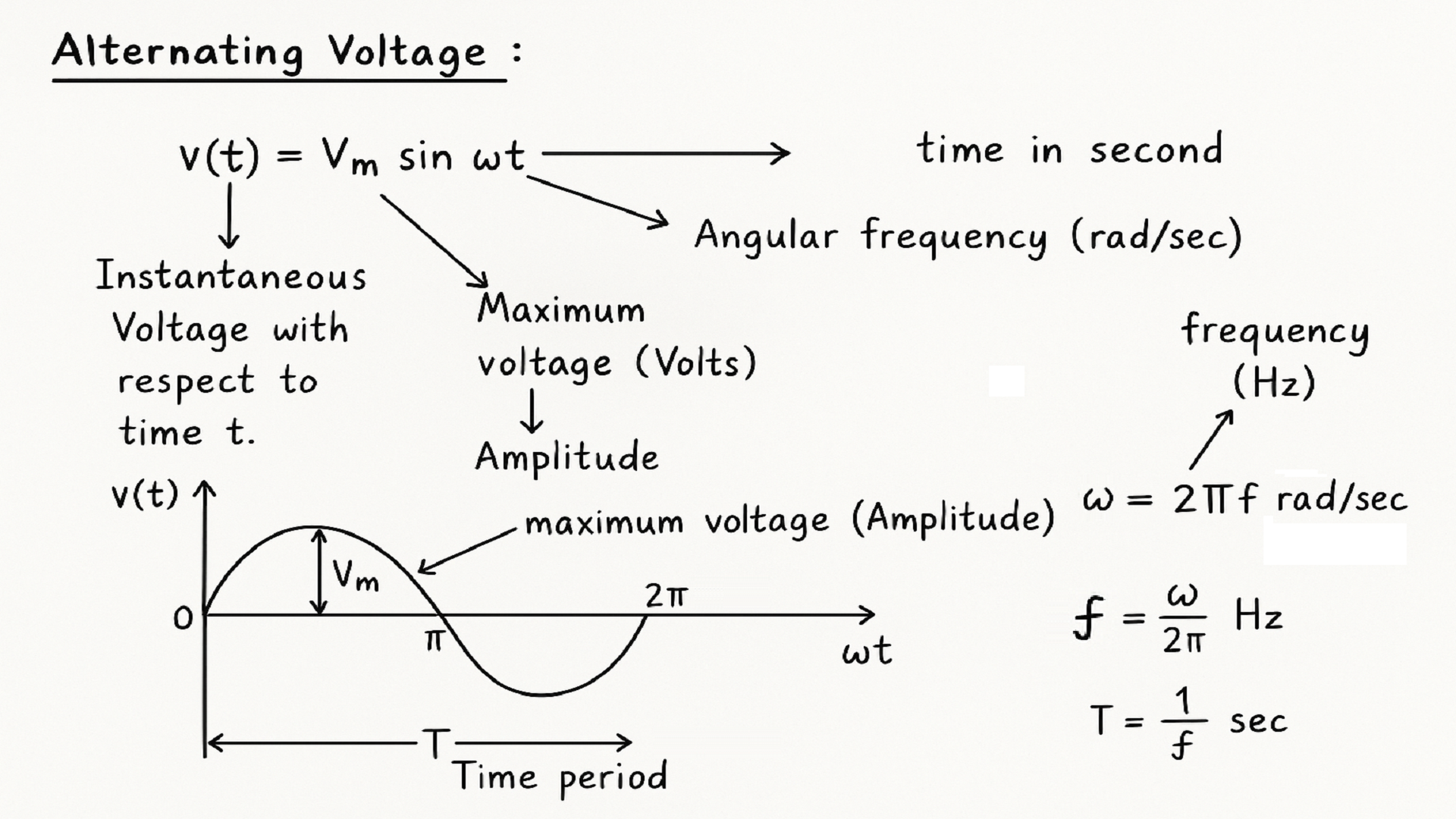

v(t) = Vm sin ωt

Let's break down each component of this crucial equation:

• v(t) - Instantaneous Voltage: This represents the specific voltage value at any given moment in time (t). As the sine wave rises and falls, v(t) changes continuously.
• Vm - Maximum Voltage (Amplitude): This is the peak or maximum value (in Volts) that the voltage reaches during its cycle. It is also known as the Amplitude of the waveform. On a graph, this is the height of the wave from the center line to its highest point.
• ω (Omega) - Angular Frequency: This term defines the rate of oscillation of the voltage in radians per second (rad/sec). It's a measure of how quickly the waveform cycles.
• t - Time: This is the specific instant (in seconds) at which the instantaneous voltage v(t) is being measured.

A graph is the best way to visualize alternating voltage:

• Vertical Axis (v(t)): Represents the instantaneous voltage.
• Horizontal Axis (ωt): Represents time or the phase angle in radians.
• Amplitude (Vm): The highest point the sine wave reaches on the vertical axis.
• Time Period (T): The total time it takes for the waveform to complete one full cycle (e.g., from one peak to the next, or from the start point through a full rise and fall back to the start).

Key Relationships and Formulas

To fully understand AC voltage, it's important to know how frequency, angular frequency, and time period relate to each other.

Frequency (f)

• Definition: Frequency is the number of complete cycles a waveform completes in one second.
• Unit: Hertz (Hz).
• Formula: Frequency can be calculated from the angular frequency using the formula:
  f = ω / 2π

Angular Frequency (ω)

• Definition: As mentioned, angular frequency measures the oscillation rate in radians per second.
• Relationship to Frequency: It's directly proportional to the frequency. The formula to find angular frequency from frequency is:
  ω = 2πf

Time Period (T)

• Definition: The time period is the duration of one complete cycle of the waveform.
• Unit: Seconds (sec).
• Formula: The time period is the reciprocal of the frequency.
  T = 1 / f

Summary

By understanding the formula v(t) = Vm sin ωt and the relationships between Amplitude (Vm), Frequency (f), Angular Frequency (ω), and Time Period (T), you can analyze and work with any alternating voltage circuit. These core concepts are the building blocks for more advanced topics in AC electronics.
