Question

What is the difference between electrical Power (kW) and electrical Energy (kWh), and why do industrial consumers get penalized for having a low Power Factor even if their energy consumption remains the same?

Answer 1

This question touches on the fundamental economic and technical aspects of utilizing electrical energy. The answer lies in understanding what you are billed for versus what the utility company must actually supply.

Part 1: Power (kW) vs. Energy (kWh)

Think of it using a water analogy:

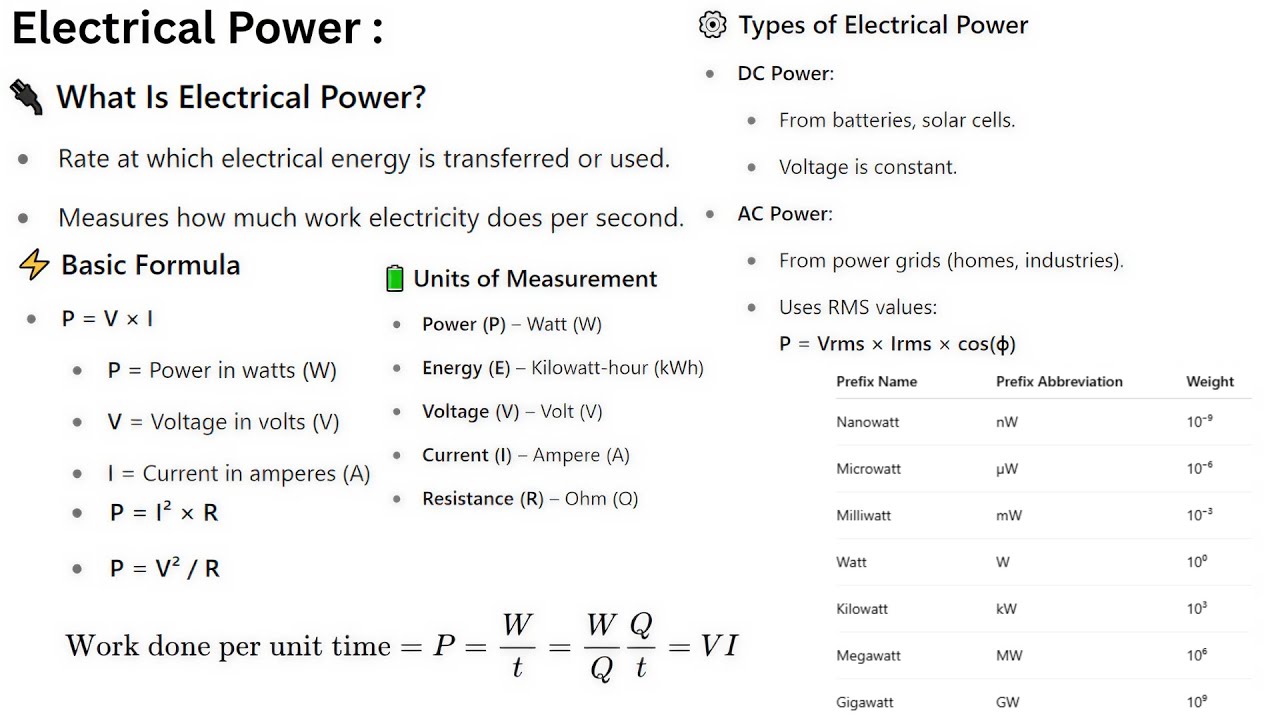

• Power (measured in kilowatts, kW): This is the rate at which energy is used. It is an instantaneous measurement of demand.
  Analogy: Power is like the speed of water flowing from a tap (e.g., liters per minute). A fully open tap has a high rate of flow (high power), while a slightly open tap has a low rate of flow (low power).
  Example: A 1 kW electric heater demands 1 kilowatt of power at any moment it is switched on.

• Energy (measured in kilowatt-hours, kWh): This is the total amount of power consumed over a period of time. It is what residential consumers are typically billed for.
  Analogy: Energy is like the total volume of water collected in a bucket over time (e.g., total liters). The final volume depends on both the flow rate (power) and how long the tap was open (time).
  Example: If you run that 1 kW heater for 3 hours, you consume 1 kW × 3 hours = 3 kWh of energy.

Part 2: The Importance of Power Factor (PF)

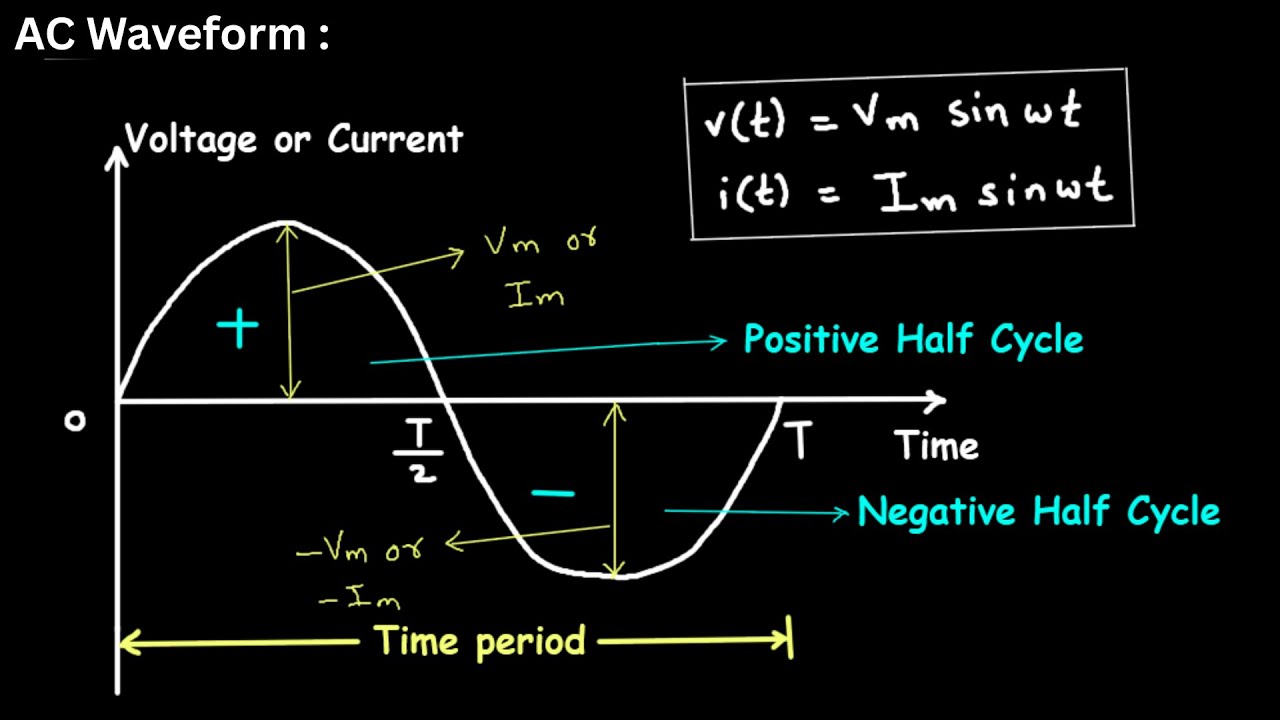

In DC circuits, power is simple: Power = Voltage × Current. However, in AC circuits, which power most of the world, it's more complex due to inductive loads like motors, transformers, and fluorescent lighting ballasts. These loads require two types of power:

1. Active Power (kW): Also called "Real" or "True" Power. This is the power that performs useful work, like turning a motor's shaft, producing heat, or creating light. This is the power that gets converted into useful energy (kWh).

2. Reactive Power (kVAR): This is the "non-working" power required to create and sustain the magnetic fields necessary for inductive equipment to operate. It doesn't do any useful work but sloshes back and forth between the generator and the load, using up the capacity of the electrical system.

The combination of these two is the Apparent Power (kVA), which is what the utility's equipment (generators, transformers, cables) must be large enough to supply.

The Beer Mug Analogy:

A great way to visualize this is the beer mug analogy:

• The Beer is the Active Power (kW). It's what you actually want and what does the work.
• The Foam is the Reactive Power (kVAR). It takes up space in the mug but doesn't quench your thirst. It's necessary to have some, but you don't want too much.
• The Total Contents of the mug (Beer + Foam) is the Apparent Power (kVA).

Power Factor (PF) is the ratio of Active Power to Apparent Power (PF = kW / kVA). It is a measure of how effectively electrical power is being used.

• A high PF (close to 1.0) means you have very little foam (Reactive Power) for the amount of beer (Active Power). This is efficient.
• A low PF (e.g., 0.7) means you have a lot of foam (Reactive Power). This is inefficient.

Why a Low Power Factor is Penalized:

Even if two factories use the same amount of useful energy (kWh), the one with a low power factor is more expensive for the utility to supply. Here’s why:

1. Higher Current Draw: For the same amount of Active Power (kW), a lower power factor means a higher Apparent Power (kVA), which results in a higher overall current flowing through the wires. (Current ∝ 1 / Power Factor).

2. Increased System Losses: The energy lost as heat in wires and transformers is proportional to the square of the current (Losses = I²R). Since a low PF causes higher current, it leads to significantly higher energy losses in the entire grid, from the power plant to the factory. The utility has to generate this lost power, and they pass that cost on.

3. Reduced System Capacity: All electrical equipment is rated in kVA. A 1000 kVA transformer can supply 1000 kW of useful power at a PF of 1.0. However, at a PF of 0.7, it can only supply 700 kW of useful power, even though it's running at its full thermal limit. A low PF means the utility's infrastructure is being used inefficiently, requiring them to invest in larger generators, transformers, and cables to serve the same useful load.

Therefore, utilities impose power factor penalties on large consumers to encourage them to improve their efficiency (by installing capacitor banks to counteract the inductive loads). This reduces the strain on the grid, minimizes energy losses, and frees up capacity for other customers.
