The Structure of the Atom: A Complete Guide to Protons, Neutrons, and Electrons

0 like 0 dislike

1 Answer

✔️
Best answer


The Structure of the Atom: A Complete Guide to Protons, Neutrons, and Electrons

Everything in the universe, from the air we breathe to the stars in the sky, is made of matter. The fundamental building block of all matter is the atom. Understanding its structure is key to unlocking the principles of chemistry and physics. This guide breaks down the essential components of an atom and their unique properties.

What is an Atom?

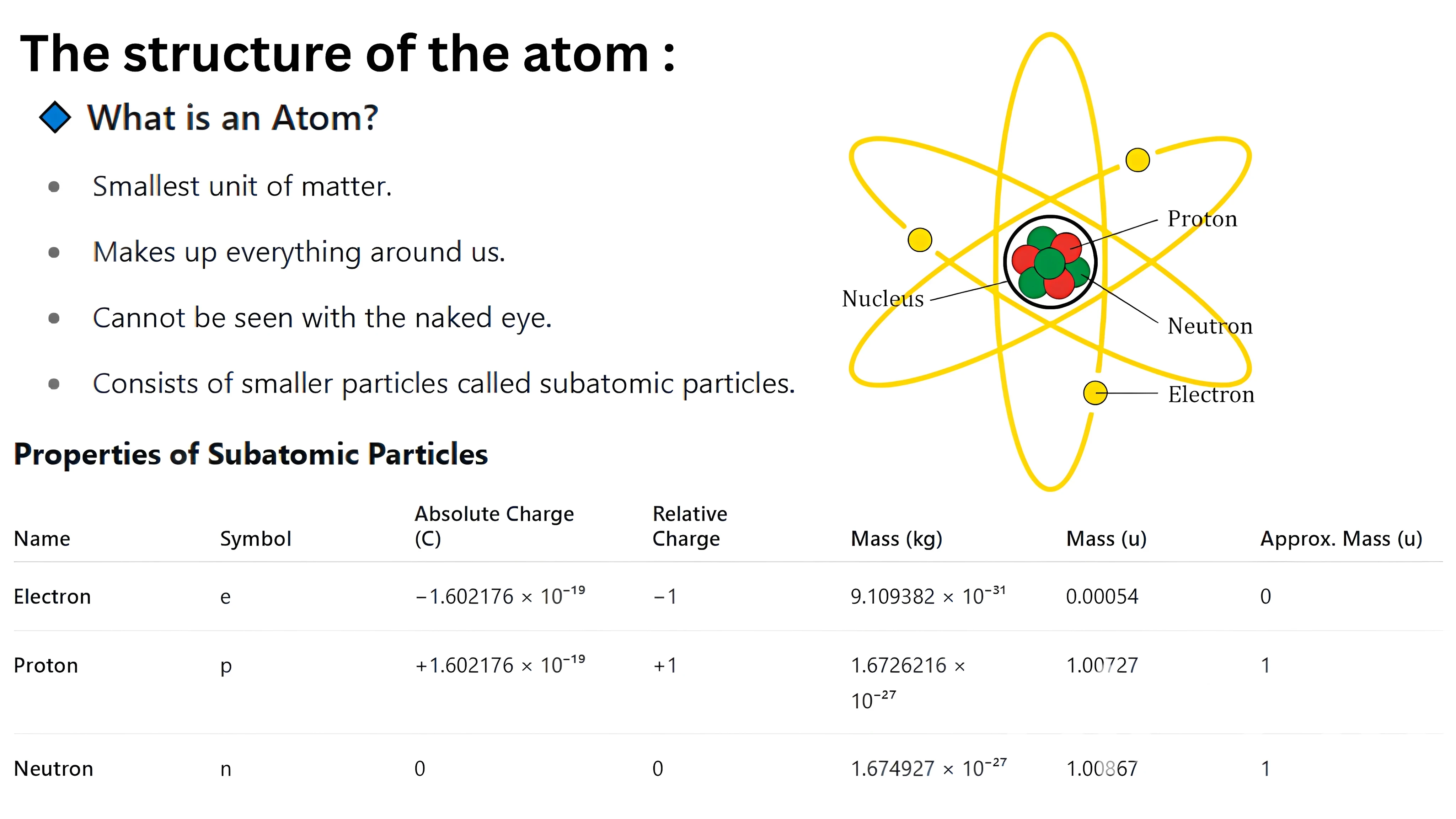

An atom is the smallest unit of matter that retains the properties of a chemical element. As detailed in the diagram, atoms are incredibly small and cannot be seen with the naked eye. Key characteristics include:

  • The Smallest Unit: It is the most basic, indivisible (by chemical means) unit of matter.
  • Universal Building Blocks: Atoms make up everything around us.
  • Subatomic Composition: Despite being the "smallest unit," atoms themselves are composed of even smaller particles known as subatomic particles.

The main subatomic particles are protons, neutrons, and electrons. Their arrangement within the atom defines its structure and behavior.

The Components of an Atom

An atom consists of two main regions: a central nucleus and the electron shells orbiting it.

1. The Nucleus: The Atom's Core

Located at the center of the atom, the nucleus is a dense, positively charged core that contains almost all of the atom's mass. It is composed of two types of particles:

  • Protons (p): These are positively charged particles. The number of protons determines the atom's identity, defining which element it is (e.g., an atom with 6 protons is always carbon).
  • Neutrons (n): These particles have no electrical charge (they are neutral). Neutrons contribute to the atom's mass but do not affect its charge.
2. Electrons (e)

Electrons are tiny, negatively charged particles that orbit the nucleus at incredible speeds. They are held in their orbits by the electrostatic attraction to the positively charged protons in the nucleus. Compared to protons and neutrons, electrons have a negligible mass.

Properties of Subatomic Particles

Each subatomic particle has a distinct mass and charge. The table below provides a detailed comparison of their properties.

| Name | Symbol | Absolute Charge (C) | Relative Charge | Mass (kg) | Mass (u) | Approx. Mass (u) |
| :--- | :--- | :--- | :--- | :--- | :--- | :--- |
| Electron | e | -1.602176 × 10⁻¹⁹ | -1 | 9.109382 × 10⁻³¹ | 0.00054 | 0 |
| Proton | p | +1.602176 × 10⁻¹⁹ | +1 | 1.6726216 × 10⁻²⁷ | 1.00727 | 1 |
| Neutron | n | 0 | 0 | 1.674927 × 10⁻²⁷ | 1.00867 | 1 |

Key Takeaways from the Data:
  • Charge: A proton has a positive charge (+1) that is equal in magnitude but opposite in sign to an electron's negative charge (-1). A neutron is neutral (0).
  • Mass: Protons and neutrons have a similar mass, each approximately one atomic mass unit (u). In contrast, the mass of an electron is over 1,800 times smaller, making its contribution to the atom's total mass almost negligible.
