A Comprehensive Guide to Combining Current Sources in Parallel

0 like 0 dislike

1 Answer

āœ”ļø
Best answer


A Comprehensive Guide to Combining Current Sources in Parallel

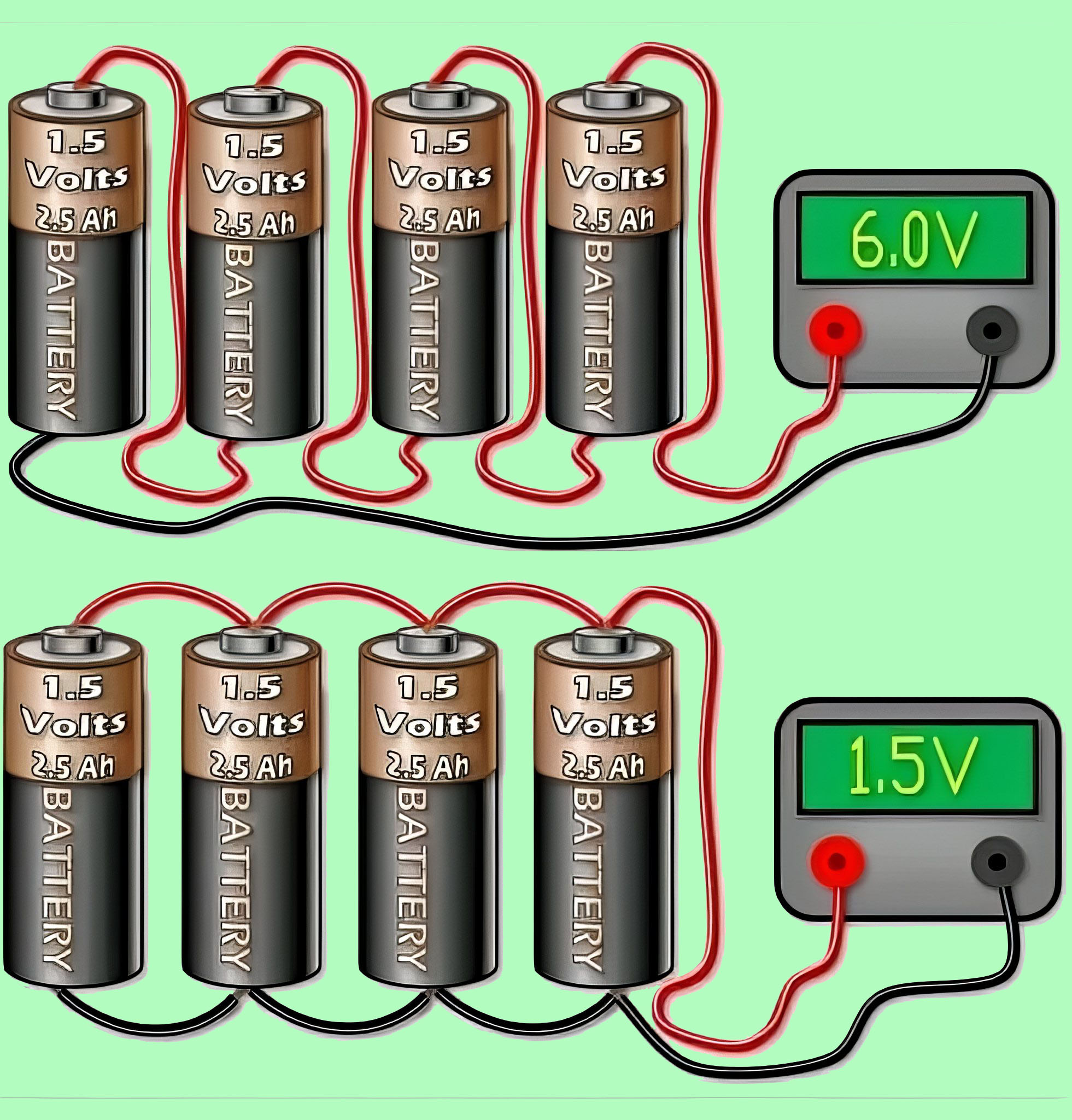

In the world of electrical engineering and circuit analysis, simplifying complex circuits is a fundamental skill. One of the most common simplification techniques involves combining multiple sources into a single equivalent source. While voltage sources are combined in series, current sources are combined when they are in parallel.

Understanding how to do this correctly can save you significant time and effort when analyzing circuits. This guide will walk you through the simple rules for combining parallel current sources, using clear diagrams to illustrate every possible scenario.

What is an Ideal Current Source?

Before we dive in, let's quickly define our terms. An ideal current source is a theoretical circuit element that supplies a constant, specified amount of current regardless of the voltage that develops across its terminals. In circuit diagrams, it's represented by a circle with an arrow inside, where the arrow indicates the direction of current flow.

The Golden Rule for Combining Parallel Current Sources

When two or more ideal current sources are connected in parallel, they can be replaced by a single equivalent current source. The rule is straightforward:

The value of the equivalent current source is the algebraic sum of the individual currents.

"Algebraic sum" simply means you must account for the direction of each current. Let's break this down into two main cases.

Case 1: Current Sources in the Same Direction

When two parallel current sources point in the same direction, their currents add up.

Scenario A: Both Sources Pointing Up

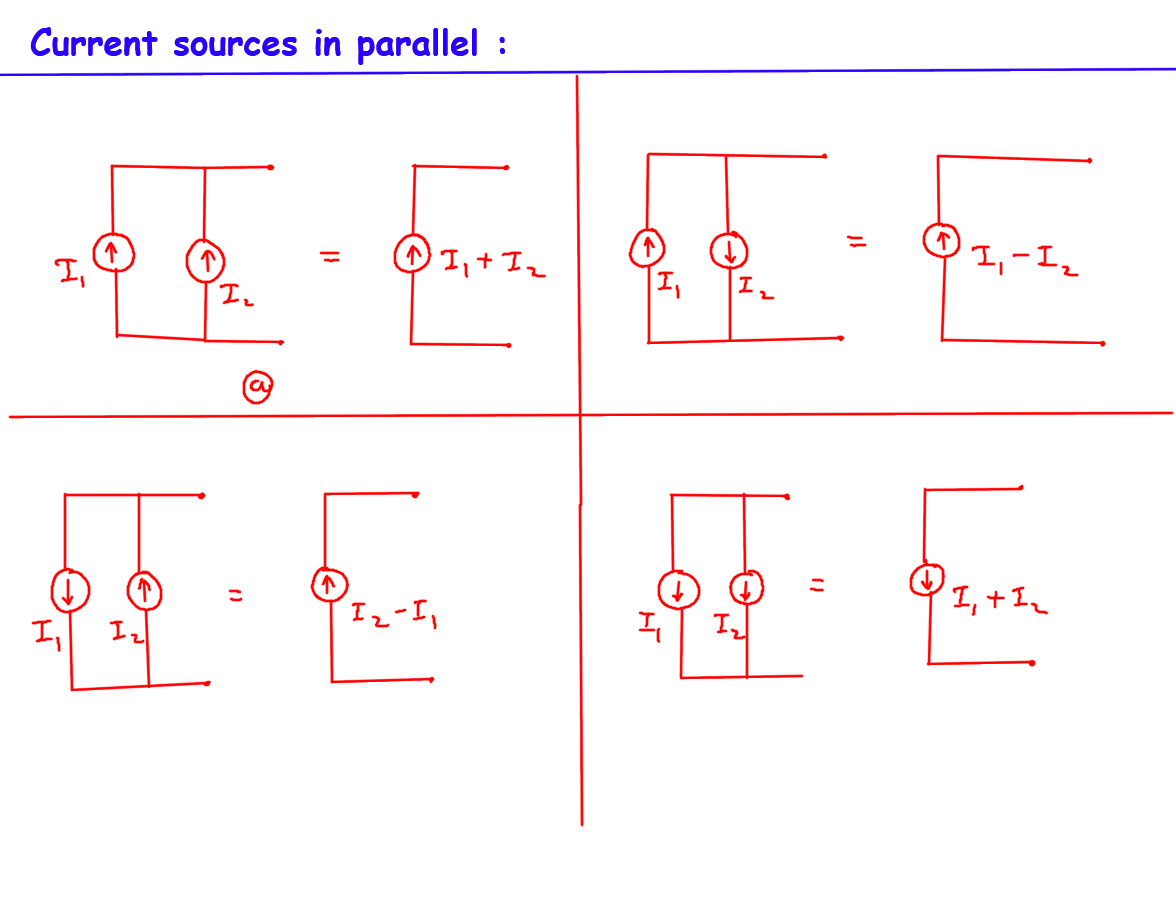

As shown in the diagram, if two current sources, I₁ and Iā‚‚, are both pushing current upwards, the total current they supply to the top node is simply their sum.

  • Equivalent Current: I_eq = I₁ + Iā‚‚
  • Direction: The same as the original sources (upwards).

Scenario B: Both Sources Pointing Down

Similarly, if both sources are directing current downwards, their effects combine.

  • Equivalent Current: I_eq = I₁ + Iā‚‚
  • Direction: The same as the original sources (downwards).

Case 2: Current Sources in Opposite Directions

When two parallel current sources point in opposite directions, they work against each other. To find the equivalent current, you subtract the smaller value from the larger one. The direction of the resulting equivalent source will be the same as the direction of the larger original source.

Scenario C: Upward Source vs. Downward Source

In this case, source I₁ is pushing current up, while source Iā‚‚ is pushing current down. The net effect depends on which one is stronger. Assuming I₁ > Iā‚‚, the net current will flow upwards.

  • Equivalent Current: I_eq = I₁ - Iā‚‚
  • Direction: Upwards (the direction of the larger source, I₁).

Scenario D: Downward Source vs. Upward Source

This is the reverse of the previous scenario. Here, Iā‚‚ is directed upwards and I₁ is downwards. Assuming Iā‚‚ > I₁, the net current will be in the upward direction.

  • Equivalent Current: I_eq = Iā‚‚ - I₁
  • Direction: Upwards (the direction of the larger source, Iā‚‚).

Why Does This Work? The Link to Kirchhoff's Current Law (KCL)

This simplification technique is a direct application of Kirchhoff's Current Law (KCL). KCL states that the algebraic sum of currents entering and leaving a node (a point where components connect) must be zero.

Consider the top node in Scenario A. Both I₁ and Iā‚‚ are leaving the node. Therefore, the total current leaving the node is I₁ + Iā‚‚. A single equivalent source must produce this same total current, hence I_eq = I₁ + Iā‚‚.

In Scenario C, I₁ is leaving the node, while Iā‚‚ is entering it. According to KCL, the total net current leaving the node is I₁ - Iā‚‚, which becomes the value of our equivalent source.

Summary: Key Takeaways

To combine current sources in parallel, follow these simple steps:
Check for Parallel Connection: Ensure the sources share the same two nodes. This technique does not work for series connections.
Check Directions:

*   If the sources point in the **same direction**, **add** their current values. The equivalent source will have the same direction.
*   If the sources point in **opposite directions**, **subtract** the smaller current from the larger one. The equivalent source will point in the direction of the larger original source.
  • Replace and Simplify: Redraw the circuit with the single equivalent current source to make further analysis easier.
