Find Current I using Superposition theorem.

by EE-Expert in Superposition Theorem asked 3 months ago

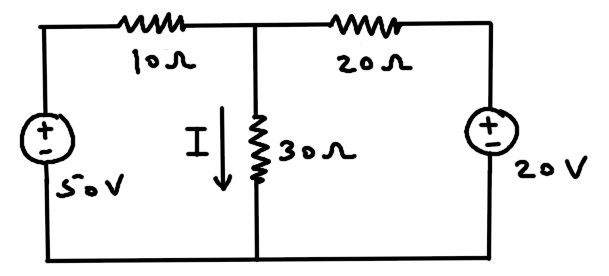

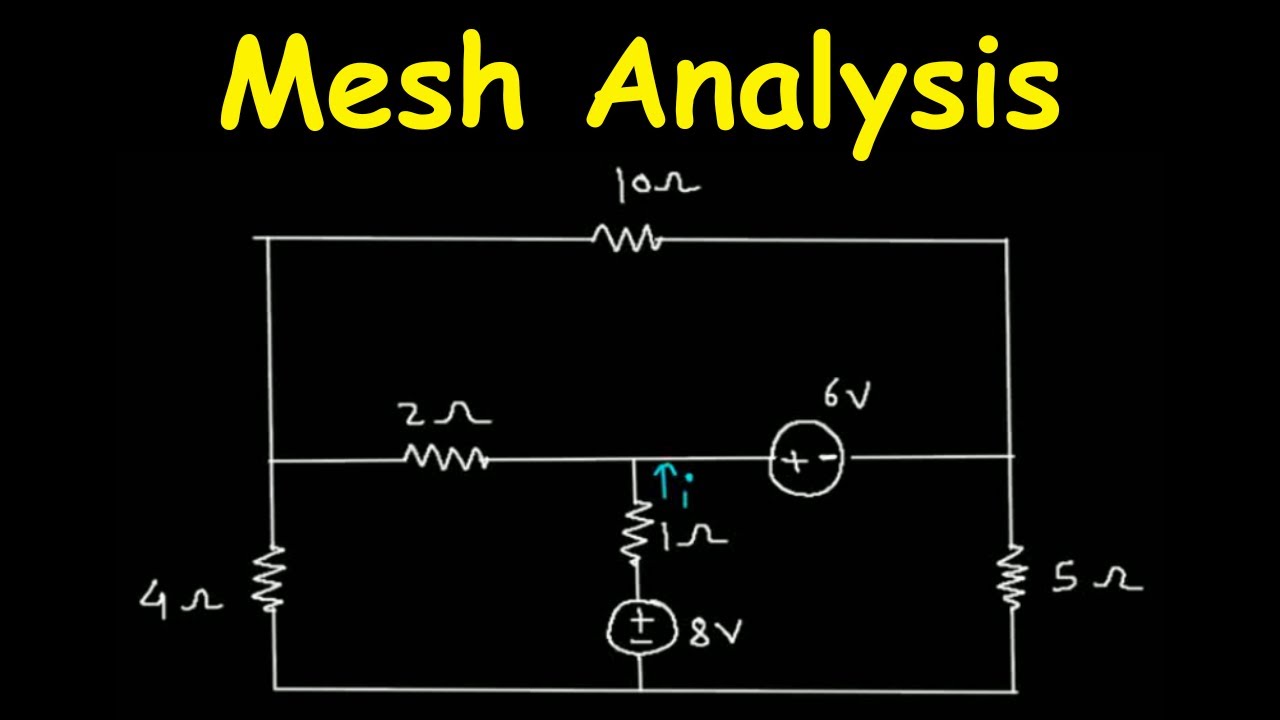

Find Current I using Superposition theorem.

1 Answer

by EE-Expert answered 3 months ago

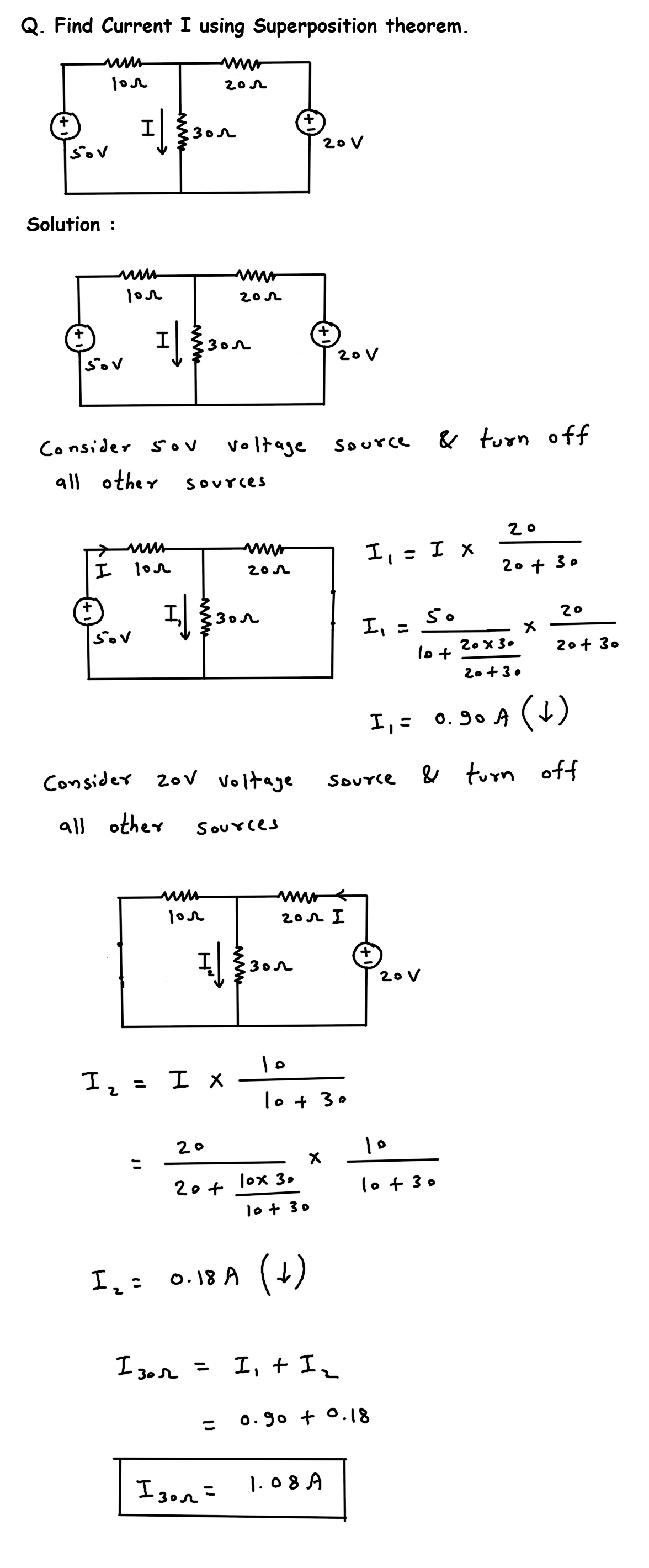

Solution :
