Source Transformation Explained: A Simple Guide to Simplifying Circuits

In the world of electrical engineering, simplifying complex circuits is a crucial skill. One of the most powerful techniques for this is Source Transformation. This fundamental method allows you to replace a voltage source with an equivalent current source, or vice-versa, without changing the behavior of the rest of the circuit.

This guide will walk you through the process, using clear diagrams and simple formulas, to help you master this essential concept in circuit analysis.

What is Source Transformation?

Source transformation is a circuit analysis technique used to convert a practical voltage source into an equivalent practical current source, or a practical current source into an equivalent practical voltage source. The key here is "practical," which means the source has an internal resistance.

  • A practical voltage source is an ideal voltage source in series with a resistor.
  • A practical current source is an ideal current source in parallel with a resistor.

This technique is incredibly useful because it is the principle behind the relationship between Thevenin's and Norton's theorems, two other cornerstone concepts in circuit theory.

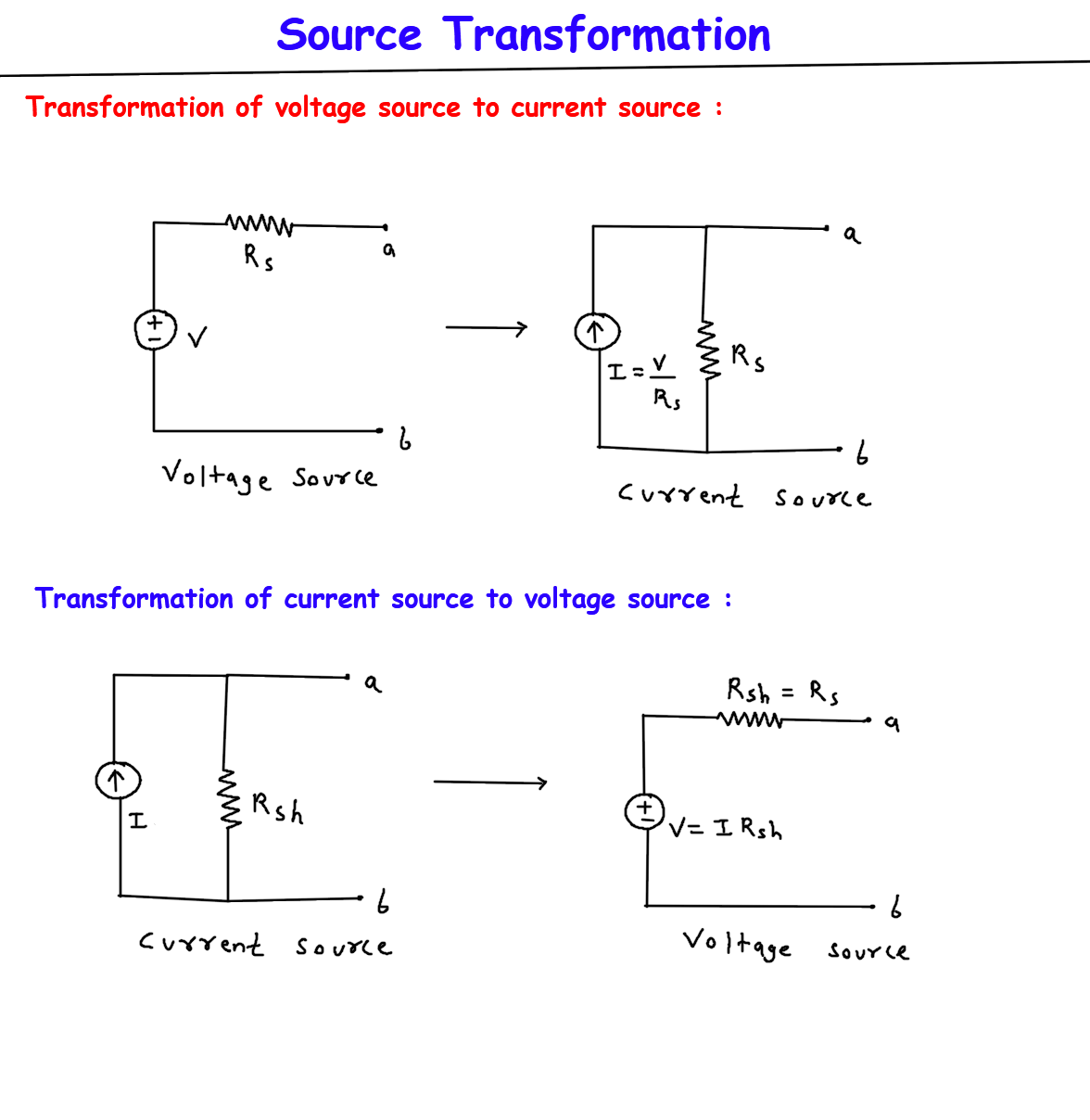

How to Transform a Voltage Source to a Current Source

Let's start with converting a practical voltage source into its equivalent current source.

A practical voltage source consists of an ideal voltage source (V) connected in series with a resistor (Rs), as shown in the diagram below.

To transform this into a current source, you perform the following steps:

  1. Calculate the Current (I): The value of the new current source is determined by Ohm's Law.
    Formula: I = V / Rs

  2. Reposition the Resistor: The series resistor (Rs) is moved to be in parallel with the new current source. The resistance value does not change.

  3. Determine the Direction: The direction of the arrow in the current source symbol points towards the positive terminal of the original voltage source.

The resulting circuit, consisting of the current source (I) in parallel with the resistor (Rs), will behave identically to the original voltage source from the perspective of any external components connected to terminals a and b.


How to Transform a Current Source to a Voltage Source

Now, let's look at the reverse process: converting a practical current source into its equivalent voltage source.

A practical current source consists of an ideal current source (I) in parallel with a resistor (Rsh), also known as a shunt resistor.

To transform this into a voltage source, follow these steps:

  1. Calculate the Voltage (V): The value of the new voltage source is also found using Ohm's Law.
    Formula: V = I * Rsh

  2. Reposition the Resistor: The parallel resistor (Rsh) is moved to be in series with the new voltage source. Again, the resistance value remains the same (so, Rsh = Rs).

  3. Determine the Polarity: The positive terminal of the new voltage source is located on the side that the arrow of the original current source was pointing towards.

The new circuit, with the voltage source (V) in series with the resistor (Rsh), is the equivalent of the original current source for any external circuit connected to terminals a and b.


Why is Source Transformation So Useful?

Source transformation isn't just a theoretical exercise; it has practical applications in circuit analysis:

  • Circuit Simplification: It can significantly simplify complex circuits, making them easier to analyze. For example, it can help reduce the number of nodes or meshes.
  • Combining Sources: By converting sources, you can easily combine multiple voltage sources that are in series or multiple current sources that are in parallel.
  • Foundation for Other Theorems: It is the direct link between a Thevenin equivalent circuit (voltage source and series resistor) and a Norton equivalent circuit (current source and parallel resistor).

Key Points to Remember

  • Equivalence: The transformation is only equivalent for the circuit external to the source (i.e., at terminals a and b). The internal behavior is different.
  • Resistor Value: The value of the resistor (Rs or Rsh) stays the same during the transformation; only its position (series or parallel) changes.
  • Ideal Sources: Source transformation cannot be applied to ideal sources. An ideal voltage source has zero series resistance (Rs=0), and an ideal current source has infinite parallel resistance (Rsh=∞). Trying to apply the formulas would result in division by zero or infinite values.
  • Polarity and Direction: Pay close attention to the polarity (+/-) of the voltage source and the direction of the current source arrow, as this is crucial for getting the correct equivalent circuit.

By understanding and applying source transformation, you can add a versatile and powerful tool to your circuit analysis toolkit.
