Question

When to Use Star Connection and When to Use Delta ?

Answer 1

Part 1: Understanding the Basic Terminology (With a Look at the Images)

Before we compare, let's define the terms you see in the diagrams. Imagine a three-phase power source is like having three separate generators (represented by the coils).

• Coil / Winding: Each of the three squiggly lines in the diagrams represents a winding in a generator or a motor. This is where the voltage is generated or used.
• Phase Voltage (V_Phase): As the arrow in both images shows, this is the voltage across a single coil. Think of it as the voltage produced by one of the three individual generators.
• Line Voltage (V_Line): This is the voltage measured between any two of the main power lines (Phase A, Phase B, or Phase C). This is the voltage you would typically measure with a multimeter at a three-phase outlet.
• Phase Current (I_Phase): This is the current flowing through a single coil.
• Line Current (I_Line): This is the current flowing in one of the main power lines (Phase A, Phase B, or Phase C).

The number √3 (the square root of 3, approximately 1.732) is a magic number in three-phase power that comes from the 120-degree phase difference between the voltages/currents.

---

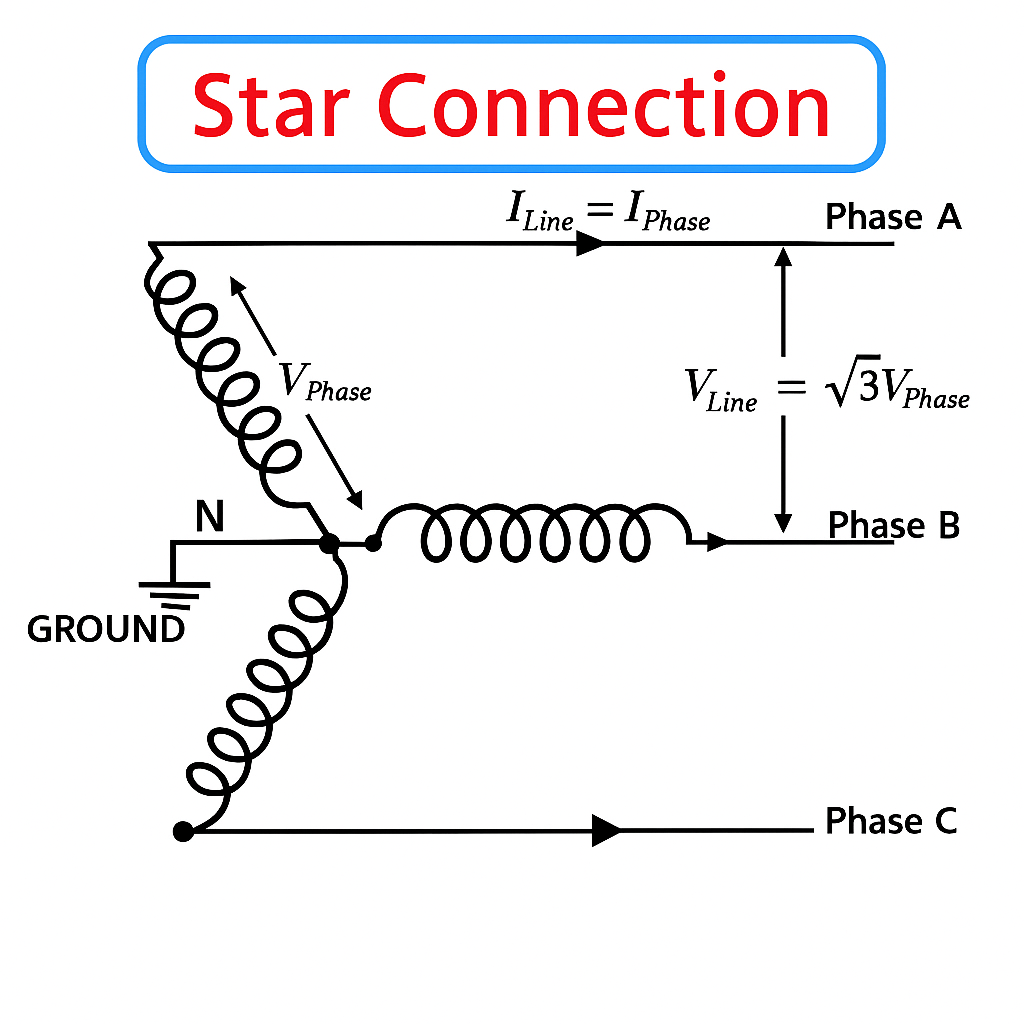

Part 2: The Star (Wye) Connection

Let's focus on the Star Connection image.

Key Characteristics:

1. The Neutral Point (N): The most important feature of the Star connection is the common point where one end of all three coils is connected together. This is called the Neutral Point. As the diagram shows, this point can be connected to Ground, which is a crucial safety feature.
2. *Voltage Relationship: `V_Line = √3 V_Phase`**
   • What this means: The Line Voltage (between any two phases) is 1.732 times higher than the Phase Voltage (across a single coil).
   • Example: If the voltage across one coil (V_Phase) is 230V, the voltage between Phase A and Phase B (V_Line) will be 230V * 1.732 = 400V.
3. Current Relationship: I_Line = I_Phase
   • What this means: The current flowing in the main power line is exactly the same as the current flowing through the corresponding coil. You can see this in the diagram; the wire for Phase A is just a direct extension of the coil.

When to Use Star Connection:

The Star connection is chosen for its flexibility and safety.

• For Power Distribution to Homes and Offices: This is the most common use. The dual-voltage capability is the reason why. Using our 230V/400V example:
  • Heavy machinery (like industrial motors or HVAC units) can be connected between two or three phases to use the higher Line Voltage (400V).
  • Standard appliances (lights, computers, outlets) can be connected between one phase and the neutral wire to use the lower Phase Voltage (230V). This is how a single three-phase supply can power an entire building with different types of loads.
• When Loads are Unbalanced: In the real world, the current drawn by Phase A, B, and C is rarely identical. The neutral wire provides a return path for any unbalanced current, keeping the system stable. Without a neutral, an unbalanced load would cause voltage fluctuations.
• For Safety: Grounding the neutral point stabilizes the system's voltage with respect to the earth. It also allows safety devices like circuit breakers to trip quickly in case of a fault where a live wire touches a metal casing.
• Reduced Insulation Requirement: Since the voltage across each winding (V_Phase) is lower than the line voltage, the windings don't need to be insulated for the full line voltage, which can reduce the manufacturing cost of transformers and motors.

---

Part 3: The Delta Connection

Now, let's look at the Delta Connection image.

Key Characteristics:

1. No Neutral Point: The most obvious difference is the absence of a neutral. The three coils are connected end-to-end, forming a closed loop or triangle shape (like the Greek letter Delta, Δ).
2. Voltage Relationship: V_Line = V_Phase
   • What this means: The Line Voltage (between any two phases) is exactly the same as the Phase Voltage (across a single coil). You can see this in the diagram; the line connections are tapped directly off the corners of the triangle.
3. *Current Relationship: `I_Line = √3 I_Phase`**
   • What this means: The Line Current is 1.732 times higher than the current flowing through a single coil. This is because the line current is supplied by two coils at each connection point.

When to Use Delta Connection:

The Delta connection is chosen for its robustness and high-power applications.

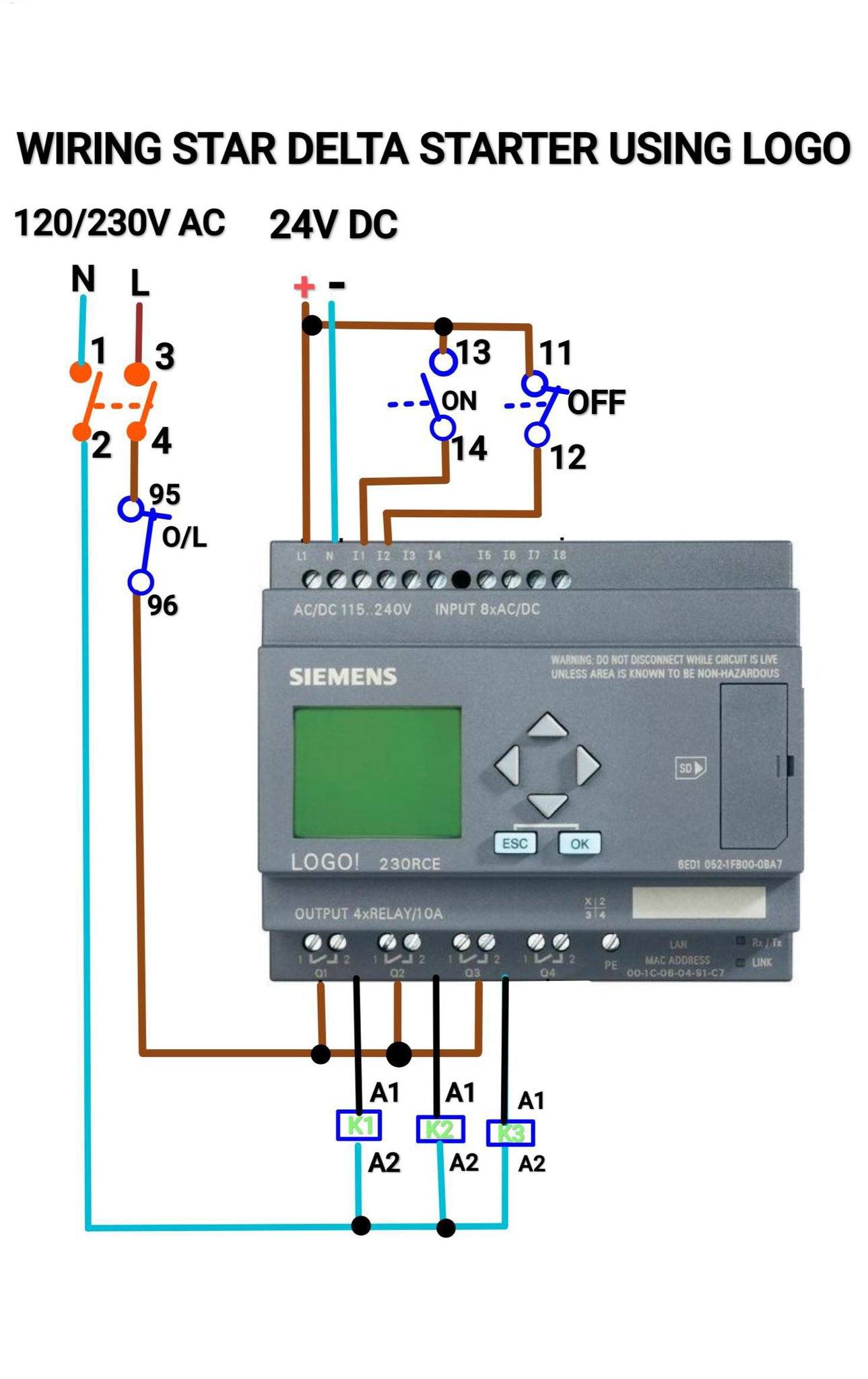

• For High Starting Torque Motors: Large industrial motors require a lot of current to get started. The Delta configuration is inherently good at handling high currents. Many large motors use a "Star-Delta starter" which starts the motor in a Star configuration (for a gentle start with lower current) and then switches to Delta to run at full power.
• For Power Transmission: Often used in high-voltage transmission lines. While it requires more insulation per winding (since V_Phase = V_Line), it is very stable for transmitting bulk power over long distances between substations.
• For Reliability: A major advantage of Delta is its reliability. If one of the three windings in a Delta transformer fails (an "open delta" or "V" connection), the other two windings can still deliver three-phase power, although at a reduced capacity (around 58% of the original). In a Star connection, if one winding fails, the entire system is effectively down.

---

Summary Table: Star vs. Delta at a Glance

| Feature | Star (Wye) Connection | Delta Connection |
| :--- | :--- | :--- |
| Diagram | Coils meet at a central point. | Coils connected end-to-end in a loop. |
| Neutral Point | Yes, allows for grounding and single-phase loads. | No, it is a closed-loop system. |
| Voltage | V_Line = √3 * V_Phase (Line voltage is higher) | V_Line = V_Phase (Voltages are the same) |
| Current | I_Line = I_Phase (Currents are the same) | I_Line = √3 * I_Phase (Line current is higher) |
| Primary Use Case| Power distribution (e.g., to neighborhoods) | Power transmission and large industrial motors. |
| Key Advantage| Flexibility - Provides two voltage levels. | Reliability - Can operate with a failed winding. |
| Best For... | Systems with mixed loads (three-phase and single-phase) and unbalanced currents. | Balanced, high-power loads where reliability is critical. |
