Question

Explain MCB and ELCB with connection diagram supplying single phase load.

Answer 1

---

Introduction

In electrical wiring, safety is paramount. MCB (Miniature Circuit Breaker) and ELCB (Earth Leakage Circuit Breaker) are two essential protective devices used in modern electrical installations.

• MCB protects the circuit and appliances from damage due to excess current.
• ELCB (or its modern equivalent, the RCCB) protects humans from electric shock due to current leakage.

Let's look at each one in detail.

1. MCB (Miniature Circuit Breaker)

An MCB is an automatic switch that opens (or "trips") when it detects an excessive current flowing through it, thereby interrupting the power supply and preventing damage. It is a more advanced and reliable replacement for traditional fuses.

Function: To provide protection against:
1. Overload: When a circuit is drawing more current than it is designed for (e.g., too many appliances on one socket). This causes wires to heat up, creating a fire hazard.
2. Short Circuit: When a live wire comes into direct contact with a neutral wire, causing a very large and sudden surge of current that can cause fire or explosions.

How it Works:
An MCB has two main tripping mechanisms inside:
Bimetallic Strip (for Overload): A strip made of two different metals bonded together. When an overload current flows for a period, the strip heats up and bends, which mechanically triggers the switch to trip. This has a time delay to avoid tripping on brief, harmless surges (like a motor starting).
Electromagnet/Solenoid (for Short Circuit): A coil of wire that acts as an electromagnet. During a short circuit, the massive and instantaneous surge of current creates a strong magnetic field that instantly pulls a plunger to trip the switch. This action is immediate.

Once tripped, an MCB can be manually reset by flipping the switch back up after the fault has been cleared.

---

2. ELCB (Earth Leakage Circuit Breaker)

An ELCB is a safety device used to directly detect stray voltages on the metal body of an electrical appliance and interrupt the circuit.

Function: To provide protection against electric shock if a person touches an appliance whose metal casing has become live due to an internal fault (i.e., when current "leaks" to the earth).

Important Note: The term ELCB is often used generically. Modern installations use a more sensitive and reliable device called an RCCB (Residual Current Circuit Breaker). The working principle explained below is for an RCCB, which is what is commonly installed today and serves the same purpose.

How it Works (RCCB Principle):
The device continuously monitors the current flowing in the live (phase) wire and compares it to the current returning through the neutral wire.
Normal Operation: In a healthy circuit, the current flowing to the appliance through the live wire is exactly equal to the current returning from it through the neutral wire. The net current is zero.
Fault Condition (Leakage): If there is an insulation failure inside an appliance, the live wire might touch its metal body. If a person touches this appliance, a small amount of current will leak through the person's body to the earth.
Tripping: This leakage means the current returning through the neutral wire is now less* than the current going out through the live wire. The RCCB detects this tiny imbalance (e.g., 30 milliamperes) and trips almost instantly (within 30 milliseconds), cutting off the power supply before a fatal shock can occur.

---

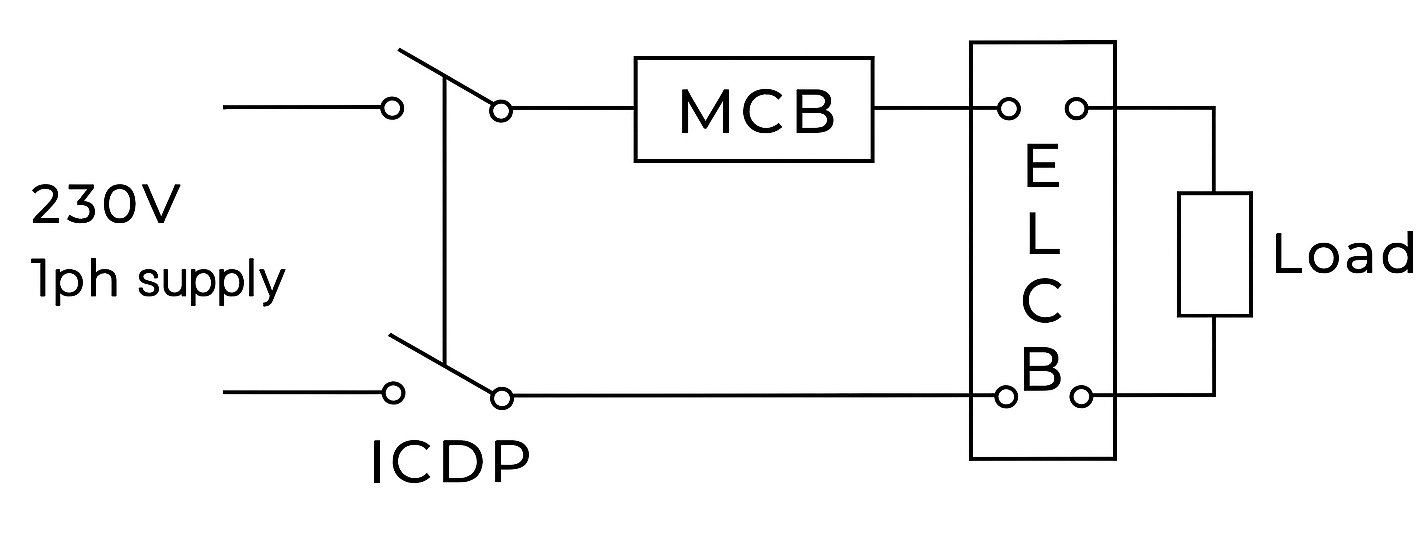

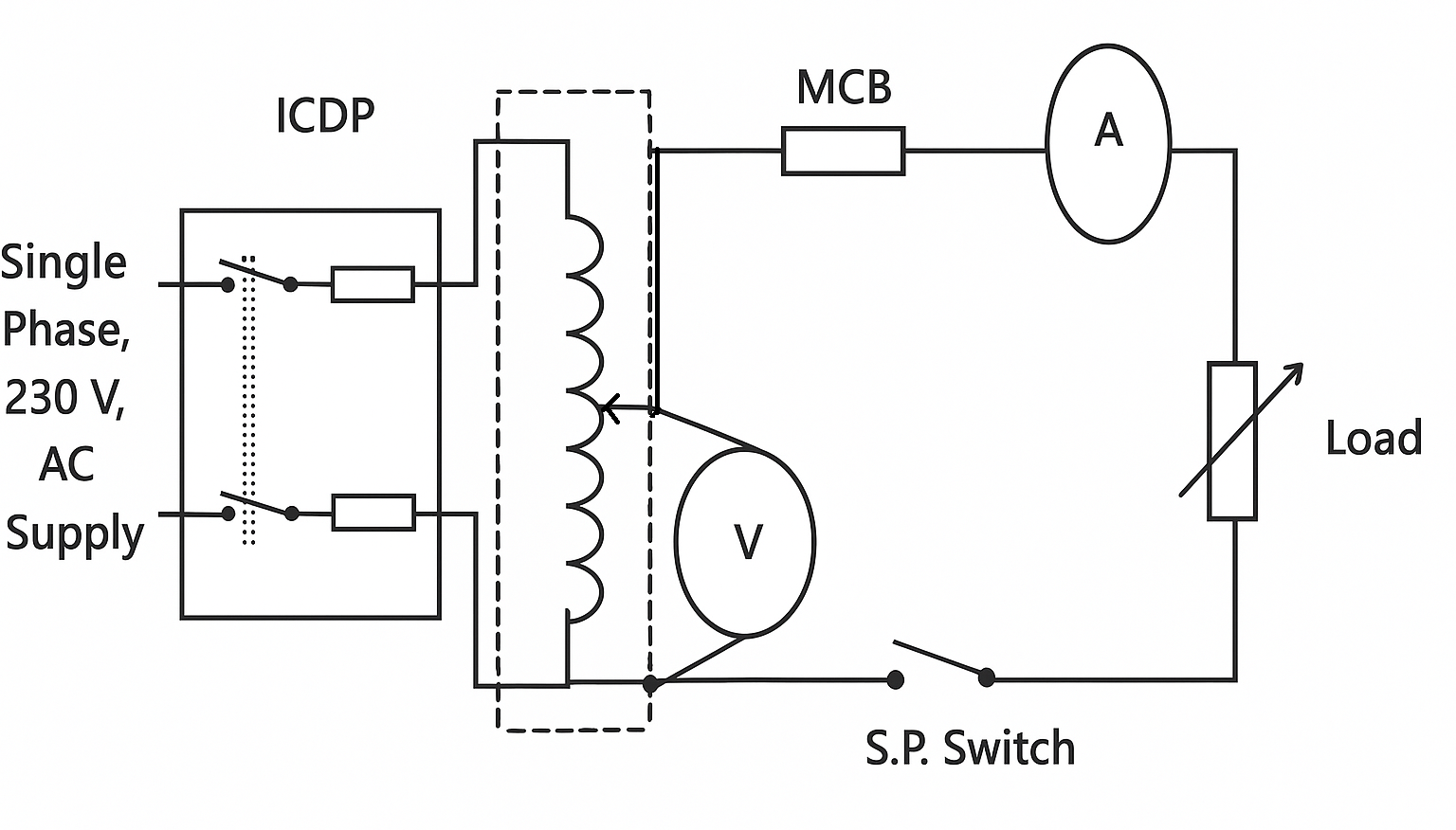

Connection Diagram for a Single-Phase Load

Here is a standard, clear connection diagram showing how an MCB and an ELCB/RCCB are wired to supply a single-phase load safely. This diagram is a clearer version of the hand-drawn image you provided.

Explanation of the Diagram:

1. Single-Phase Supply: The power comes from the utility pole with three wires: Live (L), Neutral (N), and Earth (E).
2. Main Switch (DP): A Double Pole (DP) switch (like an ICDP) is the first point of control. It can disconnect both the Live and Neutral lines simultaneously to completely isolate the house from the main supply.
3. MCB: After the main switch, the Live wire passes through the MCB. The MCB is placed only on the live line. If an overcurrent or short circuit occurs, it will cut off the live supply to the rest of the circuit.
4. ELCB / RCCB: After the MCB, both the Live and Neutral wires pass through the ELCB/RCCB. This is crucial for it to compare the currents in both wires.
5. Load: This represents any single-phase appliance, such as a water heater, air conditioner, or a socket outlet circuit. It is connected to the Live and Neutral outputs of the ELCB/RCCB.
6. Earthing: The Earth wire (E) runs directly from the supply to the metal body of the appliance. This connection is vital. In case of a fault where a live component touches the metal body, the earth wire provides a safe path for the leakage current to flow, ensuring the ELCB/RCCB trips immediately.

Summary of Differences

| Feature | MCB (Miniature Circuit Breaker) | ELCB / RCCB (Earth Leakage / Residual Current Circuit Breaker) |
| :--- | :--- | :--- |
| Primary Function | Equipment and wire protection | Human safety |
| Protects Against | Overcurrent (overload) and Short circuits | Electric shock from earth leakage currents |
| Working Principle | Thermal effect (overload) and Electromagnetic effect (short circuit) | Senses the imbalance between Live and Neutral currents |
| Connection | Connected in series with the Live wire only | Both Live and Neutral wires pass through the device |
| Sensitivity | Rated in Amperes (e.g., 6A, 10A, 16A) | Rated in milliamperes (e.g., 30mA, 100mA, 300mA) |
| Detects | High currents (Amperes) | Very small leakage currents (milliamperes) |
